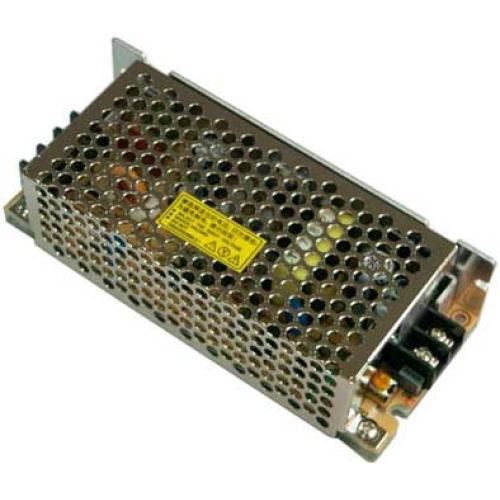

20Watts Single Output DCM-48D20S12
Your message must be between 20 to 2000 characters
Contact NowFeatures:
DC input:40VDC--60VDC
High Efficiency, and High reliability
Output protections:OCP/SCP /OVP /OPP
Wide operating ambient temperature (0℃~45℃)
All using 105℃long life electrolytic capacitors.
100% full load burn-in test
1year warranty
Specification:
|
MODEL |
|
DCM-48D20S12 |
|
|
OUTPUT |
Ouput Number |
V1 |
|
|
DC Output |
12.0V |
||
|
Rated Current |
1.6A |
||
|
Current Range Note 1 |
0~1.6A |
||
|
Ripple and Noise Note 2 |
0~45℃ |
100mV |
|
|
Voltage Accuracy |
±2.0% |
||
|
Line Regulation |
±0.5% |
||
|
Load Regulation |
±1.0% |
||
|
Set-up Time |
/ |
||
|
Hold up Time |
/ |
||
|
Temperature Coefficient |
±0.3%/℃ |
||
|
Overshoot and Undershoot |
<5.0% |
||
|
INPUT |
Voltage Range |
40VDC---60VDC |
|
|
Frequency Range |
/ |
||
|
Efficiency ( Typical) |
70% |
||
|
DC Current (max.) |
0.8A |
||
|
Inrush Current (Typical) |
25A |
||
|
Leakage Current |
/ |
||
|
PROTECTION |
Over Power |
110%~180% Constant Rate output power |
|
|
Over Current |
110%~180% Constant Rate output power |
||
|
Over Voltage |
110%~180% Shut down |
||
|
Shorted Circuit |
Long-term mode, auto recovery |
||
|
ENVIRONMENT |
Operating amb.Temp.& Hum. |
0℃~45 ; 20%~9℃5%RH No condensing |
|
|
Storage Temp. & Hum. |
-25℃~85 ; 10%~95%RH No condensing℃ |
||
|
SAFETY &EMC (Note 3) |
Safety Standards |
GB4943-2001; EN60950-1:2006 |
|
|
Withstand Voltage |
Primary-Secondary:0.5KVAC;≤10mA.Primary-PG:0.5KVAC; ≤10mA.Secondary-PG:0.5KVAC;≤10mA. |
||
|
Isolation Resistance |
≥100M ohms |
||
|
EMI Conduction&Radiation |
/ |
||
|
Harmonic Current |
/ |
||
|
EMS Immunity |
/ |
||
|
OTHERS |
MTBF (MIL-HDBK-217F) |
More than 100,000Hrs (2℃, Full load) |
|
|
Dimension (L*W*H) |
143×59×38mm |
||
|
Cooling method |
Cooling by free air convection |
||
|
NOTE |
1. All parameters NOT specially mentioned are measured at rated input, rated load and 25℃ of ambient temperature. 2. Measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. |
||
