220V high-speed roll up door motor
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 5-9 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 sets/year |
| Supply Ability: | 1000 sets/month |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | ISO9001 SGS CE |
| HS Code: | 73083000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,China |

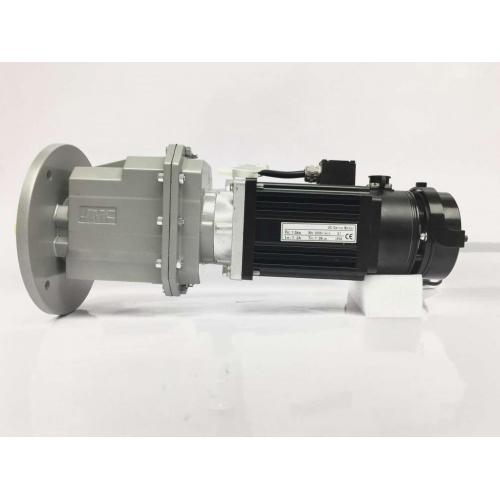

Servo Motor And Control Box
Hongfa high speed door motor and control system is suitable for high speed PVC doors and metal type high speed doors. The system is in compact package, with high torque and high operating speed, lower noise, high reliability, smooth and soft operating curves, it’s suitable for high speed and intensive usage environment. The Servo high speed door motor driving system can be configured with push button switch, radar sensor, auto sensors, safety edge/air flow sensor, photo beam sensor, vehicle loops sensor, etc.
Motor Specifications
| Model | PE200 | PE2000 | PE500 |
| Rated output | 750W | 750W | 1500W |
| Speed | 0-2000rpm | 0-2000rpm | 0-2000rpm |
| Rated output speed | 0-200rpm | 0-260rpm | 0-200rpm |
| Maximum Torque | 100N.M | 75N.M | 150N.M |
| Rated torque |
35N.M |
30N.M | 50N.M |
| Temperatuer rise | <30°C | <30°C | <30°C |
| Operating Temperatuer | -40°C-60°C | -40°C-60°C | -40°C-60°C |
| Torque managment systerm | Torque servo systerm | Torque servo systerm | Torque servo systerm |
| Adaptation door area | 2-20 square meter | 2-15 square meter | 2-35 square meter |
| Limit mode | Absolute Encoder | Absolute Encoder | Absolute Encoder |
| Manual release | lectro mechanical hand wheel/winch | ||
| Self-locking mode | Electro mechanical brake | Electro mechanical brake | Electro mechanical brake |
| Weight | 10kg | 10kg | 28.8kg |
What's the feature of the servo motor?
| precision | the system use full closed-loop servo control and double encoder design ,this is to ensure long operating life and to prevent overshooting during operating |
| stability | the system utilizes integrated design concept ,in order to simplify internal wiring and to prevent malfunction cause by wiring and terminal connections |
| high speed | motor max speed is 2500rpm ; door max operating speed is 2m/s |
| smooth | the torque servo system can adjust torque to the load automatically ,and its use S speed curve mode step less speed regulating to ensure a smooth operation. |
| custom-made | each system's operating control order and mode can be custom made to suit each door ,to ensure max operating condition . The system has a unique order and more memory mode and one key recover mode. |
| safety | the system has a build in emergency stop signal and control order ,the motor can be ativated within 30 millsecond after receive the order ,to ensure maximum safety. |
| high usage | the system is benign to suit continuous high usage,and it can applied to high frequency high speed passage way . |
| energy efficiency | the rare earth permanent magnet synchronous motor utinizes rare earth PMSM'S output and overload are twice higher han the asynchronous motor ,also compare to the asynchronous motor, the rare earth PMSM is more energy efficient ,lighter, has a slower heating rate ,and bigger torque. |
RFQ
What service you can get from us ?
1) OEM service for you and your clients .
2) Arrange the shipment for you to everywhere .
3) CE / ISO-9001 / SGS Certification
4) Installation video or instruction for you.
5) Available suggestion about the correct doors.
6) Professional service supporting with different language , email or phone calling .
7) Operating guidance and instruction after installation .
8) Professional / Tirelessly after-sales service .
9) 12 Months warranty for all doors and accessories.
