10.1INCH BUS ENTERTAINMENT AND MULTILINGUAL SYSTEM

SERVER(TM901M)

l         Support two1000MEthernet output, one port support POE .can connect to wireless AP directly

l         Support3G/4Gwireless card, passengers can connect to internet through server

l         Support wired/wireless microphone, tour guider offer live tour by microphone

l         Support optional (2.4/5G)WIFI module, to reduce the cost for small vehicle

l         Built-in two ways 15W digital amplifier can directly drive an external speaker

l         Support VGA/HDMI extended video output, can connect to large display

l         Support up to 5T /2.5'' disk

l         Built-in high capacity lithium battery backup power to prevent accidental Power off

l         Using a double shockproof structure design,support 2.5'' hard disk,save cost SSD

l         Intel N2800 dual core  industry PC ,high performance, more steady system

l         Ubuntu Linux 14.04 OS

l         Dual fan cooling design, good heat dissipation

l         Wide voltage input :DC24V-36V

l         Tracking vehicle online

l         Integrated  GPS multilingual tour commentary system

 DISPLAY(TM901D)

l        Professional adjustable iron bracket, easy for installation

l         7inch TFT screen, comfortable display solution for operation by driver

l         Volume can be setting by driver

l         Professional and adjustable bracket. easy for installation

l         Standard and professional key pad, data update by USB 2.0 and micro sd card

l         Professional sun protection cover

l         All in one design, one cable to server only

 Power BOX(TM901P)

l         Support 4 output, maximum output current up to20A

l         Support control the power connector and ON/OFF by server

l         Support auto detection power support(voltage, current) and report to server

l         Support the perfect power protection,load short circuit will automatically trip

l         Recoverable fuse switch,no need to replace the fuse after troubleshooting

Wireless AP(TM901AP)

l        Special ceiling design, easy for vehicle installation

l         POE support, can connect to server directly

l         Support up to 200 terminal devices

l        2.4G/5Gfull frequency, full coverage

      HUB(TM901H)

l        Fully enclosed waterproof structure designed to prevent external factors(Rain, dust, human) damage to the equipment

l         An new isolation hub between connections to isolate every signal receiver.

l         With standard industrial grade connectors, very good for on-site custom cables

l         Inbuilt 2 ways RJ11 connector, driver 2 terminal devices

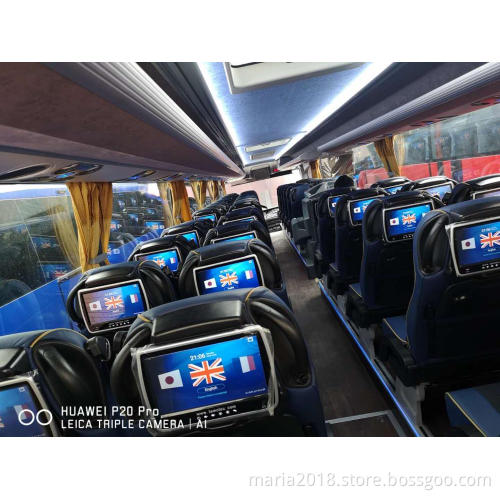

Terminal devices(TM901S)

l         Support audio, video, game, survey, live commentary, GPS trigger,wifi

l         10.1inch colorful IPS high pixel screen

l         Android 6.0 OS 4cores CortexTM-A7 CPU

l         With high life earphone socket, replace earphones socket by screwdrivers

l         Extra thin design, very easy for installation

l         Easy to install,small damage to the seatSupport1Afast charge by USB

l         Support access internet through server

l         Wide power input DC24V-36V
