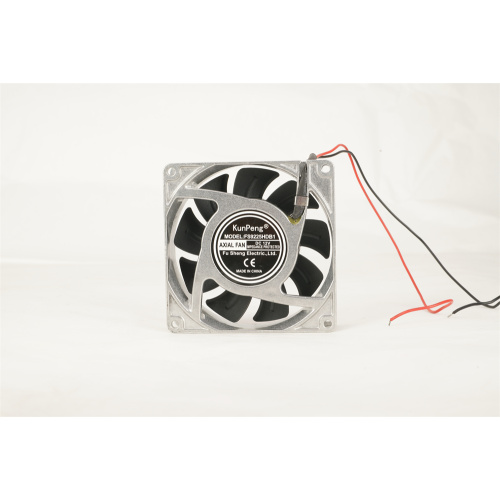

Aluminum Alloy Frame Axial Fan for Dissipate Heat
- Incoterm:
- FOB
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 8000sets/day |
| Supply Ability: | 8000sets/day |
| Incoterm: | FOB |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Brushless DC motor has no carbon brush, high speed adjustment precision, low failure rate, reduced maintenance and service life. Brushless motor has gradually replaced the traditional brush motor. Most of the cooling fans are currently using brushless motors.The DC fan is a fan that can turn around the DC motor to drive the impeller of the fan to directly convert the DC motor to the mechanical energy through the input of DC power. The most important key of the DC fan is the selection of the DC motor. What's more, the bearing of the DC axial fan is made of high speed and high temperature imported bearing NSK bearings. Under the condition of 50Hz, 2800 revolutions / minutes, in the case of 60Hz 3450 revolutions / minutes, it is free from lubrication and 20000 hours without maintenance, which is equivalent to 2 years running continuously.
Production description
Parameter:
Frame:Aluminum Alloy
Impeller:Thermal Plastic,UL 94V-0
Lead Wire:AWG#24 UL1007(Optional)
(+):Red(-):Black
Insulation Resistance:
Above 10M Between Lead wire and Frame DC500V
Life Expectancy: Ball bearing:over 50000hr(At 25 degree)
Sleeve bearing:over 30000hr(At 25 degree)
Specification:
Model
Bearing
Rated voltage(v)
Rated current
(A)
Rated
Nominal speed
(RPM)
Air flow
(CFM)/(m^3/min)
Air pressure
Noise
(dB)
Weight(g)
FS9225DDA12B(S)
sleeve/ball
12
0.50
6.00
3200
85.55
2.39
4.81
0.18
50.0
75
FS9225HDA12B(S)
sleeve/ball
12
0.25
3.00
2800
65.01
1.82
3.83
0.15
40.0
FS9225MDA12B(S)
sleeve/ball
12
0.20
2.40
2500
46.30
1.29
3.05
0.12
30.0
FS9225LDA12B(S)
sleeve/ball
12
0.16
1.92
2000
38.80
1.08
2.18
0.08
23.0
FS9225DDA24B(S)
sleeve/ball
24
0.35
8.40
3200
85.55
2.39
4.81
0.18
50.0
FS9225HDA24B(S)
sleeve/ball
24
0.22
5.28
2800
65.01
1.82
3.83
0.15
40.0
FS9225MDA24B(S)
sleeve/ball
24
0.18
4.32
2500
46.30
1.29
3.05
0.12
30.0
FS9225LDA24B(S)
sleeve/ball
24
0.15
3.80
2000
38.80
1.08
2.18
0.08
23.0
FS9225HDA48B(S)
sleeve/ball
48
0.13
6.24
3200
65.01
1.82
3.83
0.15
40.0
FS9225MDA48B(S)
sleeve/ball
48
0.07
3.36
3000
46.30
1.29
3.05
0.12
30.0
Imput
power(W)
Certification
Our company has been ISO9001-2000 international quality
management system certification as the purpose,
now introduced to the environmental management system.
The products are certified by many countries and regions.
Such as: UL, CCC, TUV, CE and so on.
ABOUT US
Shenzhen Fu Sheng Electric Co.,LTD.is professional manufacturer of DC/AC/EC containing brush less axial compressor,cross current flow,centrifugal cooling fan,it is set up in October 2004 located in the beautiful scenery and developed economy,Shenzhen City,Guangdong Province.We have been working hard in the industry field and the enterprise has been a considerable scale.Because of the advantages of the business philosophy,has been a good product price and quality service to win the market,To win the trust of customers.Our products are widely used in IT field,Sports equipment,ventilation equipment,welding equipment, power systems,medical electronic equipment,machinery and equipment etc.
WHY CHOOSE US?
1.Product diversification, DC, AC, EC full series of brushless axial flow, cross flow, centrifugal fan.
2.14 years of production experience, to provide you with quality assurance.
3.Professional and technical personnel and advanced production equipment.
4.7x24 hours service online, welcome to consult, to provide you with high quality service.
5.Protection of your sales area,ideas of desigen and all your private information.
Packing and Shipment
2.You can choose sea, air, land, and international express, or the mode of transportation according to the customer's request.
3.The delivery time is 7~10 days, according to the quantity of the goods.
