Wireless modem with 5W output power
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 2 Set/Sets
- Min. Order:
- 2 Set/Sets
- Delivery Time:
- 9 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 sets / year |
| Supply Ability: | 20000 sets / year |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | SO9001 certification |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

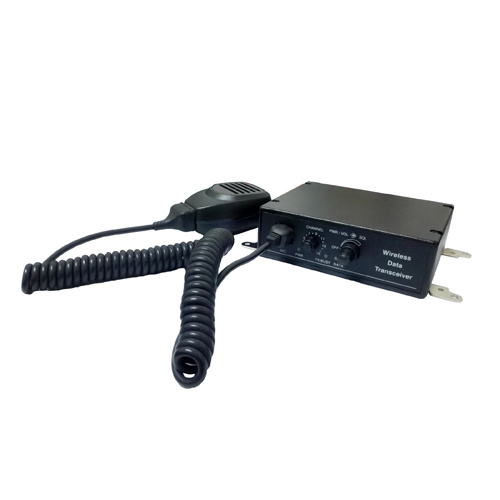

The GDWP5R is a high-speed data radio designed for long-distance and high-performance data wireless modems with 5W output power. It uses GFSK modulation to provide high frequency resource usage and anti-interference performance is the first equipment for industrial control of users in important fields such as water conservancy, electric power and oil fields.
Because of its high stability and possibility, data radio is used by many suppliers such as PLC, RTU, MHI, and DCS to monitor and control key assets. It can be used in small or large scale telemetry systems, especially for mobile and temporary access point applications, or as an uneconomical and impractical alternative to cabling.
Specifications
1. General
(1)OPERATINGFREQUENCYRANGE: 420 to 440MHz
(2) Channel spacing: 25 KHz
(3) Number of
channels: 16
(4) ANTENNA IMPEDANCE: 50 Ohm unbalanced
(5) OPERATING TEMPERATURE: -40 to +70℃
(6) FREQUENCY STABILITY TCXO: ±2.0ppm
(7) OPERATION VOLTAGE RANGE: DC 11V to 14V (Typical 12V)
( 8) STAND-BY CURRENT: 85mA
2. TRANSMITTER
(1) RF OUTPUT POWER: 5W programmable
(2)RECEIVER ATTACK TIME: 10ms
(3) AUDIO FREQUENCY RANGE: 300Hz to 3400Hz ±2dB
(4) SPURIOUS EMISSIONS: less than 0.25uW (30MHz to 1GHz)
(5) OUTPUT 2ND HARMONIC: less than –65dB
(6) MAXIMUM FREQUENCY DEVIATION: ±5KHz
(7) REFERENCE OSCILLATOR: TCXO
(8) RF IMPEDANCE: 50 Ohm unbalanced
(9) FM HUM AND NOISE RATIO: greater than –50dB (under normal condition)
2. RECEIVER
(1) TYPE OF RECEIVER:Crystalcontrolled double, super heterodyne
(2) INTERMEDIATE frequency: 45MHz (1st IF), 455KHz (2nd IF)
(3) SENSITIVITY(12 dB SINAD) : Better than 0.2uV
(4) SQUELCH
SENSITIVITY: 0.1uV to 1uV programmable
(5) ADJACENT CHANNEL SELECTIVITY: greater than –70dB
(6) SPURIOUS AND IMAGE REJECTION: greater than –65Db
(7) OUTPUT AUDIO
DISTORTION: 3% at 1 KHz for ±5KHz deviation
(8) FM HUM AND NOISE RATIO: greater than 40dB
3. Data and Interface
(1)
MODULATION: GFSK
(2) AIR RATE: 0-1200bps, 2400bps , 4800bps, 9600bps, 19200bps, programmable
(3) INTERFACE DATA BIT: 8/7 bit
(4) INTERFACE PARITY BIT: None / Even /
Odd
(5) INTERFACE STOP BIT: 1 bit
