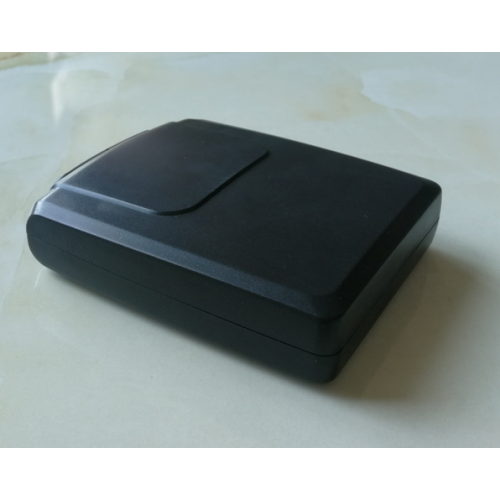

Heated Coat Power Bank 7.4v 6800mAh (AC403)

AC403PC-7V6400 battery is 7.4v 6800mah version of AC403 rechargeable li ion battery pack. AC403 battery is 4x18650 li ion rechargeable battery pack designed for heated jacket and other heated products with PWM the adjustable pulse DC output technology.
Application products like: heated motorbike clothing, electric jacket liner, best heated vest motorcycle, best heated coat and other heated wears products.  The ac403 battery is designed with plug holding port, with specified 90 degree 3.5*1.35mm DC plug the connection will be very stable, never will lose connection in sports activities.

The AC403 battery is designed for electric heated wears application.  It's size is  24*81*95mm( 24*81*100mm for 14.8v wireless version) , with an ON/OFF switch and a LED screen, a 3.5*1.35mm coax type socket connector.
The AC403 battery LED screen can be made to reflect the battery fuel level status by displaying number 0~9, 9=full, 0=need charge.
The AC403 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.
The AC403 battery has backwards DC port with aperture to hold the plug which make perfect stable connection, specially good for heated sports wears application.
By adopting different cells the capacity can be:
14.8V 2200mah/2600mah/3200mah/3400mah
7.4V 4400mah/5200mah/6400mah/6800mah
3.7v  8800mah/10400mah/12800mah/13600mah
*For 11v battery we have smaller size version AC301 in same function by 3x18650 design.

Battery ID: AC403PC-7V6800
Cell inside: 4pcs li ion 18650 cell
Capacity: 7.4V 6800mAh
Input: 8.4V 3A max
Output: 8.4V~6V 3A max, PWM Pulse DC output adjustable, 5 levels non-wireless version or 3 levels wireless version.
Dimension: 24*81*95mm
Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 225g
Function Code: PC

AC403PC-7V6800 battery is made of Samsung/LG/Panasonic 3400mAh/3500mAh 18650 battery.

Typical cell options:

Panasonic NCR18650B 3400mAh

Panasonic NCR18650GA 3500mAh

SAMSUNG INR18650-35E 3400mAh

LG INR18650F1L 3350mAh

LG INR18650MJ1 3500mAh

We make li ion battery packs for all heated wears in all size option, search (model number) to find more information in our site.
