Battery Heated Pants Battery 7.4v 4400mAh (AC402)

The AC402-7V4400 is 7.4v 4400mAh version of AC402 battery, made of DLG/HYB 2200mAh 18650 battery. The AC402 7.4v 4400mAh heated jacket battery works for Tour Master Synergy 7.4V Women's Heated Vest, which is a battery-powered, heated casual vest with two heating panels on the chest and one on the back. The AC402 battery has 5 level push button operation, and battery life ranges from 5 hours on high to 20 hours on low temperature setting, Surface temperature ranges of 135º/100%, 120º/75%, 105º/50%, 90º/25%.  Other Application: heated shoes, electric heated clothes, heated outdoor shoes, heated winter womens clothes, heated mens clothing.

The AC402-7V4400  battery is a PWM control battery which allow user to adjust the desirable output power rate. It comes with 5 settings (non-wireless, 20%-40%-60%-80%-99%) or 3 settings(wireless, 33%-66%-99%) as standard version. We can make custom setting as request.

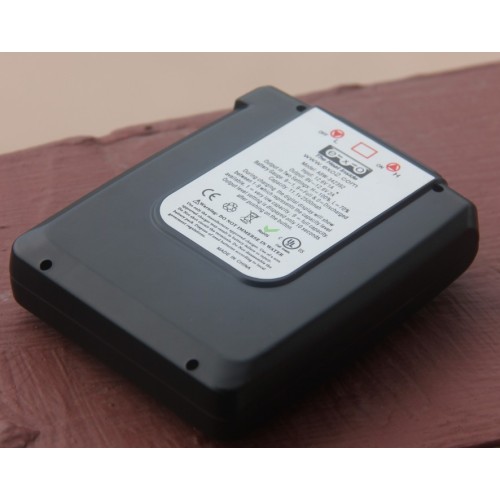

The AC402 battery is designed for electric heated jacket application.  Its size is 25*80*102mm, has 4pcs 18650 li ion battery cells inside, with two switches and a LED display screen, a 3.5*1.35 coax type socket connector, or other connector by an extension cable.

The AC402 battery LED screen can be made to reflect the battery fuel level status by display number 0~9, 0=empty, 9=full.

The AC402 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers. By PWM control technology, a 15v battery can have output equal with 3.7v/7v/11v battery to generate equivalent heat level. The PWM control technology enable the battery output adjustable to any heating levels in request, it could be 3 settings, 4 settings or up to 9 settings.

The AC402 battery is perfect for 7V/12V/15V heated clothing.

Typical Capacity Option:
3.7v 8800mAh/10400mAh/12800mAh/13600mAh
7.4v 4400mAh/5200mAh/6400mAh/6800mAh
14.8v 2200mAh/2600mAh/3200mAh/3400mAh

Battery ID: AC402PC-7V4400
Cell inside: 4pcs li ion 18650 battery
Dimension: 25*80*102mm
Rating: 7.4V 4400mAh
Input: DC 8.4 3A max
Output: 6V~8.4V 3A max
Output setting:
5 settings (non-wireless, 20%-40%-60%-80%-99%)
3 settings (wireless, 33%-66%-99%)
Other customer settings optional
Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 222g
Function Code: CC,PC,DM
