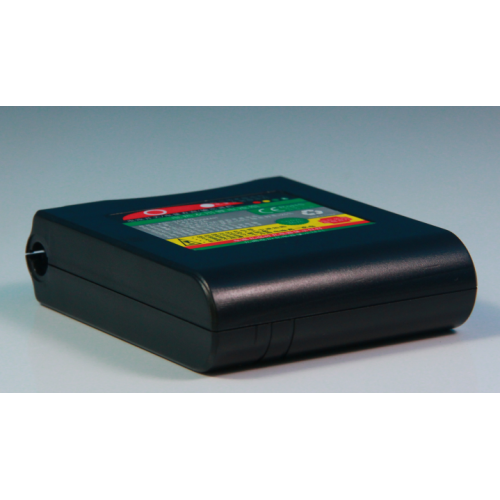

Battery Heated Jacket Battery 3.7V 10400mAh (AC401)

The AC401NC-3V10400 battery is 3.7v 10400mah version of AC401 rechargeable li ion battery pack by using DLG/HYB/BAK/ATL/CATL/LS or Samsung/LG 2600mAh 18650 battery.  It works with 3v designed heated slipper, heated insole, heated boot or heated hand warmer. It also works with USB powered heated gears like Vinmori's Electric Heated Vest, the Size Adjustable USB Charging Heated Clothing, but would generate less heat then USB power bank does.

The AC401 battery is designed for electric heated wears application.  It's size is 24*72*90mm , with an ON/OFF switch and a LED light indicator, a 3.5*1.35mm coax type socket connector.

The AC401 battery LED light can be made to reflect the battery fuel level status by different color.

The AC401 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.

The AC401 battery has backwards DC port with aperture to hold the plug which make perfect stable connection.

By adopting different cells the capacity can be:

14.8V 2200mah/2600mah/3200mah/3400mah

11.1v 2200mah/2600mah/3200mah/3400mah

7.4V 4400mah/5200mah/6400mah/6800mah

3.7v  8800mah/10400mah/12800mah/13600mah

Battery ID: AC401NC-3v10400
Cell inside: 4pcs li ion 18650 cell (or 3 cells for 11.1v)

Capacity: 3.7v 10400mAh

Input:  4.2v 3.5A max

Output: 4.2v~3V 3.5A max Constant DC output only, not adjustable for this specified mode.
Dimension: 24*72*90mm
Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 225g
Function Code: NC, NS

Application: heated motorcycle jacket,heated hunting jacket,jacket that heats up, other type electric heated wears.
