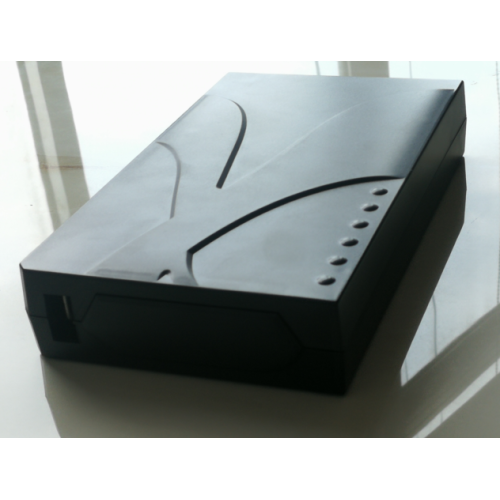

Power Bank For Battery Operated Jacket (AD601)

The AD601 li ion battery pack application: battery operated jacket, heated motorcycle clothing, battery powered heated gloves, milwaukee jacket battery, heated long johns. The AD601 battery is made of 6pcs 26650 li ion battery cell or 9pcs lithium ion 18650 battery cells or Lipo cells, it can be constant DC output 12V/22V or come with adjustable pulse DC output with designated output power rate. It works as an super fast recharging power bank as well with advantage of recharging itself in 2-3hours only for 30Ah equivalent power bank capacity.

Battery Case ID: AD601
Cell inside: 6pcs li ion 26650 cell
or 9pcs 18650cell or lipo cells
Dimension: 33*104*176mm
Input/Ouput Terminal: 5.5*2.5,5.5*2.1,3.5*1.35mm
or designated connector in extension cable.
Weight: 563g
Function Code: CC, CP, DM.
Typical Capacity Option:
22.2v 4500mAh/5000mAh
11.1v 9000mAh/10Ah/7500mAh/9Ah/9600mAh/10500mAh

The AD601 battery is designed for motorcycle heated clothings and DC heated blanket application with larger size and bigger capacity. It is perfect for higher power drain heated clothing like those for motorcycle riders. It is also idea back up battery for light 7v/12V heated clothing when user stay in one place not in moving and need keep warming up.
The AC601 battery LED screen can be made to reflect the battery fuel level status by display number 0~9, 0=empty, 9=full.
The AD601 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.
The AD601 battery also could works as an POWER BANK, PORTABLE CHARGER for all USB gears, smart phones and iphones. With a 12.6v 5A/8A AC/DC charger the AD601 battery could recharge back almost full in about single one hour time, really saves a lot chargingtime compared with market's standard power bank which need 10-20 hours.

AD601 super fast recharging power bank for charging smart phone and all USB gears,
AD601 heated clothing battery pack for motorcycle heated clothing, heated jacket, heated wears,
AD601 heated blanket battery pack for 12v DC powered heated blanket, portable heated blanket.

The highest recharging rate on standard power bank is 9V*2A=18W
This AD601 gets 12.6v*5A=63W, 3 times more then those highest speed.
The normal recharging rate on standard power bank is merely 5V*1A=5W,
Wasting too much time waiting the power bank recharge back itself.

Battery operation instruction.

Pairing the remoter with battery.

We make li ion battery packs for all heated wears in all size option, search (model number) to find more information in our site.

AD601 11V 10AH super power bank battery for heated clothing, heated jacket, heated blanket, heated vest, heated coat and other heated wears.
