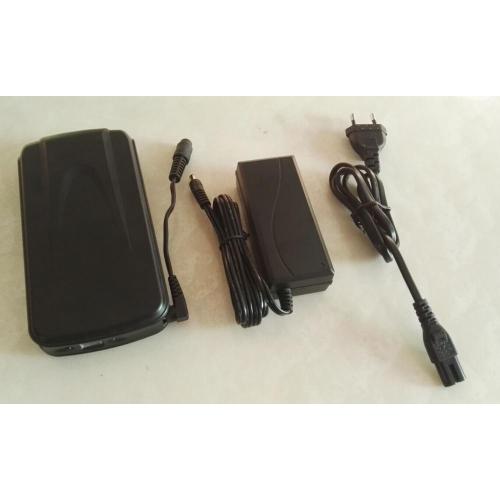

Electric Coat Battery Wireless 11V 9000mAh (AC801)

The AC801PC-11V9000 battery is 11.1v 9Ah version of AC801 battery made of ATL/Samsung/LG/Panasonic Lipo cells.

The AC801PC-11V9000 battery is a PWM control battery which allow user to adjust the desirable output power rate. It comes with 3 settings(33%-66%-99%) as standard version. We can make custom setting as request. Wireless controller is optional for this battery. Our wireless controller is FCC certificated.

The AC801 battery is designed for heavy duty electric heated clothing application.  It has pretty bulk size 35*85*168mm , with two switches and a LED display screen, a 5.5*2.5 coax type socket connector (can be 3.5*1.35mm, 5.5*2.1mm or other type as well).

The AC801 battery LED screen can be made to reflect the battery fuel level status by display number 0~9, 0=empty, 9=full.

The AC801 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.

The AC801 battery is perfect for higher power drain heated clothing like those for motorcycle riders. It is also idea back up battery for light 7v heated clothing when user stay in one place not in moving and need keep warming up.

Typical Capacity Option:
7.4v 8800mAh/10400mAh/12800mAh/13600mAh
11.1v 7000mAh/8000mAh/9000mAh/10000mAh
14.8v 4400mAh/5200mAh/6400mAh/6800mAh

Battery ID: AC801PC-11V9000
Cell inside: Lipo cells or 6pcs/8pcs li ion 18650 battery
Dimension: 35*85*168mm
Rating: 11.1V 9000mAh
Input: DC 12.6V 5A max
Output: 9V~12.6V 8A max, pluse DC output 3 levels setting: 1.=33%, 2.=66%, 3.=99%, Wireless Controller Optional
Input/Ouput Terminal: 5.5*2.5,5.5*2.1,3.5*1.35mm
or designated connector in extension cable.
Weight: 350~470g
Function Code: PC
Application: electric heated jacket mens, heated vest canada, heat wear, other types electric heated wears or electric heated gears.
