Women's Heated Hoodie Battery Adjustable 11V 3400mAh (AC401)

The AC401PC-11V3400 battery is 11.1 3400mah version of AC401 rechargeable li ion rechargeable battery pack made of Samsung/LG/Panasonic 3400mAh/3500mAh 18650 battery. This battery is good for 11v light weight heated jacket liner which donot draw power over 2.5Amps. The connector is 3.5*1.35mm.

Cell options:
Panasonic NCR18650B 3400mAh
Panasonic NCR18650GA 3500mAh
SAMSUNG INR18650-35E 3400mAh
LG INR18650F1L 3350mAh
LG INR18650MJ1 3500mAh

The AC401PC-11V3400 battery is a PWM control battery which allow user to adjust the desirable output power rate. It comes with 4 settings(25%-50%-75%-99%) or 3 settings(33%-66%-99%) as standard version, . We can make custom setting as request.

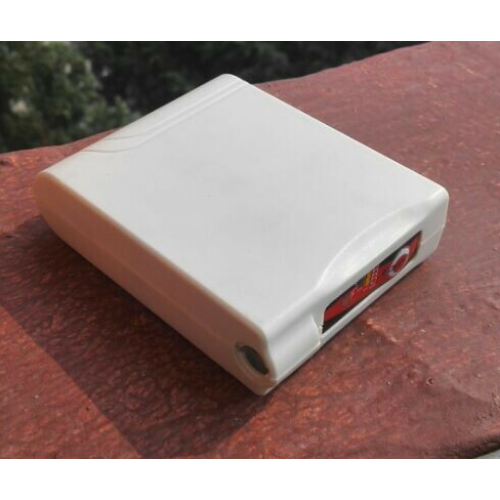

The AC401 battery is designed for electric heated wears application.  Its size is 24*72*90mm , with an ON/OFF switch and a LED light indicator, a 3.5*1.35mm coax type socket connector.

The AC401 battery LED light can be made to reflect the battery fuel level status by different color.

The AC401 battery can be made to have different output mode: Constant DC type, Pulse DC type (adjustable pulse settings), or two both.  Asarke Heated Clothing Battery is using Pulse-Width Modulation(PWM) or Pulse-Duration Modulation (PDM) technology which able to control/adjust the output power rate thus achieve desirable heat level in heater. Pulsed DC (PDC) or pulsating direct current is a periodic current which changes in value but never changes direction, pulsating direct current is used on PWM controllers.

The AC401 battery has backwards DC port with aperture to hold the plug which make perfect stable connection.

By adopting different cells the capacity can be:

14.8V 2200mah/2600mah/3200mah/3400mah

11.1v 2200mah/2600mah/3200mah/3400mah

7.4V 4400mah/5200mah/6400mah/6800mah

3.7v  8800mah/10400mah/12800mah/13600mah

Battery ID: AC401PC-11V3400
Cell inside: 3pcs li ion 18650 battery

Capacity: 11.1v 3400mAh

Input:  12.6v 2A max

Output: 12.6v~9V 2.5A max, Pulse DC output with adjustable output levels, 3 settings, 4 settings or made per request.
Dimension: 24*72*90mm
Input/Ouput Terminal: 3.5*1.35mm coax type,
or designated connector in extension cable.
Weight: 175g
Function Code: PC

Application: battery jacket, heated body warmer, heat suit,  other type electric heated wears.
