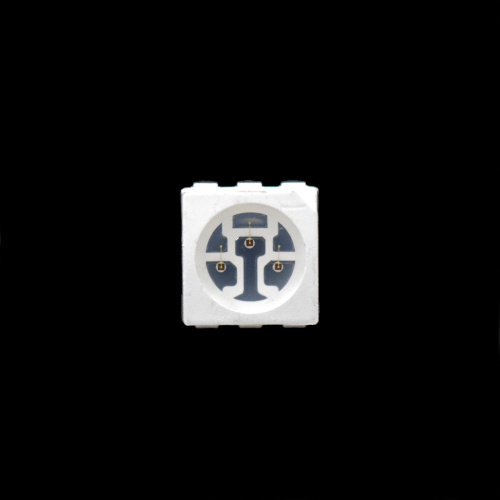

595nm Yellow LED 5050 SMD LED 3-chips

Get Latest Price

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

595nm LED Emits amber color(or you can cal it as yellow color). Normally, we just package it just one single LED chip. In order to increase the output and radiation on one LED, we will package this with 3 same LED chip into 5050 SMD LED to reach stronger radiation or brightness. There have kinds of LED chip can be packaged in one 5050 SMD LED, which can be 3 different chip or 3 same chip. It's totally up to your requirement. As we know, there have three position in 5050 SMD LED. So that 5050 SMD LED case can packaged in 3 chips inside. For some project, just one single chip might cannot reach that requirement. If one single 595nm LED chip cannot meet your requirement, this one won't let you disappointment. Uniform light output, long life solid state reliability and low power consumption are all the advantage of this 3 chips 595nm SMD LED. Contact us for more detail about it~

595nm ir led

- Size: 5.0*5.0*1.3mm

- Chip Number: 3 chips

- Color: 595nm LED

- Type: Surface mount device

- Chip brand: Epistar

- Polarity mark cathode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters-

5050 SMD LED 3 Chips Size

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

0.2W SMD LED 595nm YELLOW LED

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter

Symbol

Rating

Power Dissipation	Pd	240mW
Pulse Forward Current	IFP	300mA
Forward Current	IF	60mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	100°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000pcs

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage	VF	1.8	2.1	2.4	V	IF=60mA
Luminous Intensity	IV	1500		2500	mcd	IF=60mA
Peak Wavelength	λP		600		nm	IF=60mA
Dominant Wavelength	λD	593	595	600	nm	IF=60mA
Half Width	Dl		15		nm	IF=60mA
Viewing Half Angle	2q1/2		±60		deg	IF=60mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		13		ns	IF=60mA
Fall Time	Tf		13		ns	IF=60mA
