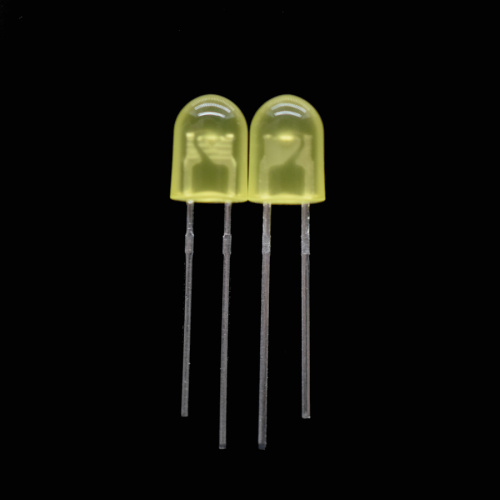

546FYD is a yellow LED that package with oval yellow diffused epoxy lens. In this lens, the lighting effect will be soft and diffused. On the other hand, check the picture as follow, we can see there have no stopper on the LED pins, which means this LED will be easy to use when your soder it on PCB board. For oval through-hole LED, there have kinds of color for your choose in Best LED factory. Such as: yellow oval LED, red oval LED, green oval LED, blue oval LED, purple oval LED and white oval LED ect. If you need some oval LED for your project, just feel free to let us know which color can meet your project then we can produce it as your requirement. This yellow oval through-hole LED was largely used in LED indicator, LED bill board ect. We packaged this yellow through-hole LED with oval diffused yellow lens. Yellow diffused case make this LED emits soft and diffused, even when the LED didn't working, these LED still can be easy to distinguish the color.

yellow led

- Dimension Parameters -

Oval 5mm LED lamp

*1. All dimensions are in millimeters ;

2. Tolerance is ± 0.10 mm unless otherwise noted.

We also packaged 365nm LED, 940nm LED, 850nm LED, Red through-hole LED,

Blue through-hole LED, IR LED with 5mm water clear lens.

Yellow LED Emitting color:

546FYD Yellow led

*Colors in the photo was took by camera, please take actual emitting color as standard.

Electrical Parameters

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	75	mW
Pulse Forward Current	IFP	100	mA
Forward Current	IF	30	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	°C
Operating Temperature	Topr	-40 ~ +80	°C
Storage Temperature Range	Tstg	-40 ~ +100	°C
Soldering Temperature	Tsol	260	°C
Electro-Static-Discharge(HBM)	ESD	2000	V
Warranty	Time	5	Years
Anti-static bag	Piece	1000	Back

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol		Min	Typ		Max	Unit	Test Condition
Forward Voltage	VF	1.8		2.0	2.4		V	IF=20mA

Luminous Intensity	IV	800		1500	mcd	IF=20mA
Peak Wavelength	λP		595		nm	IF=20mA
Dominant Wavelength	λD	587	590	595	nm	IF=20mA
Half Width	Dl		15		nm	IF=20mA
Viewing Half Angle	2q1/2		±35/15		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	tr		10		ns	IF=20mA
Fall Time	tf		10		ns	IF=20mA
