304FYWD-14

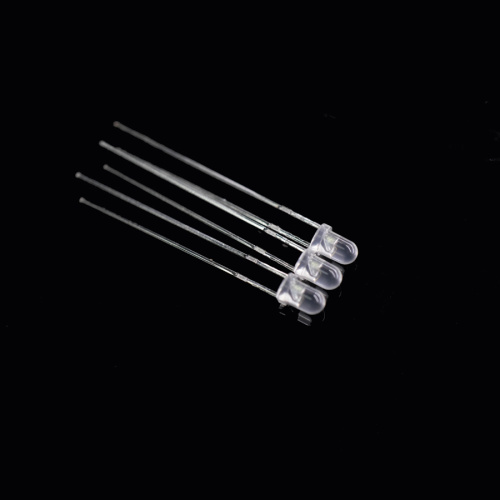

We packaged this 3mm 30 degree 590nm yellow LED with light diffused LED lens. Which can make sure this yellow LED have a better uniform lighting output form the whole LED body not just the center. Compare with other 3mm diffused yellow LED, 304FYWD-14 got the most brightest brightness and can handle 60mA current. The brightness can reach 3000-6000mcd when it is working. This size is commonly used in many custom projects, car light, LED back lighting, signal lighting, models and nearly every other project you can think of. They are also used for custom project ot in mass production as well. This size is small enough so that this diffused yellow 3mm LED can easy to fit with most all spaces. 30 degree viewing angle is a narrow angle. This means that light is more direct and not so spread. Which can help out a lot when you trying to illuminate something in long distance.

-Dimension Parameters -

 *1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

*In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection
