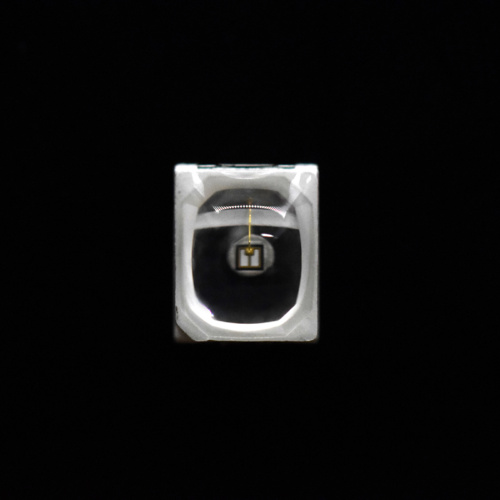

365nm-375nm Purple UV LED 2835 SMD LED 0.1w

365nm-375nm Purple UV LED 2835 SMD LED 0.1w

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- UV LED -

2835FVC-365B1L13

We packaged this UV LED with 0.2W power UV LED chip, which mean this UV LED can handle max 60mA for continued working. On the other hand, we also make a extra lens on the top of the LED when we making the epoxy lens. With this way, this UV LED SMD LED will got more concentrated light. Ultraviolet light-emitting diode (UV-LED) is a kind of LED. Its wavelength range is 260-400 nm. It is a single-wavelength invisible light, generally below 400 nm. Curing applications are the most popular application for 365nm or 395nm LED. 365nm UV LED are more widely used in UV glue curing. In addition, these UV LED are also perfect for note-checking equipment. Compare with the traditional UV tube, this UV LED will got longer lifespan and higher efficiency. Do you need some UV LED for your project? Contact us for more detail about it~

365-375nm LED with extra lens

- Size:2.8*3.5*0.8mm

- Wavelength: 365nm

- Color: Purple UV LED

- Lens type: Water clear

- Different color are available

- Warranty: 5 Years

- Different wavelength are available

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability
- Low Power consumption

- Anti UV epoxy resin package

-High temperature resistance

- Dimension Parameters -

. All dimensions are in millimeters ; 2. Tolerance is ± 0.10 mm unless otherwise noted.

This case are also available for UV LED, Yellow LED, White LED, blue through-hole LED, red through-hole LED, IR LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter

Symbol

Rating

Power Dissipation

Pd

100mw

Pulse Forward Current

IFP

100mA

Forward Current

IF

30mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

1000v

Warranty

Time

5Years

Antistatic bag

Piece

1000Bag

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

3.0

3.2

V

IF=20mA

3.2

3.4

3.4

3.6

3.6

3.8

Luminous Intensity

IV

1

3

lm

IF=20mA

Peak Wavelength

λP

365

370

K

IF=20mA

370

375

375

380

Half Width

Dl

18

nm

IF=20mA

Viewing Half Angle

2q1/2

±60

deg

IF=20mA

Reverse Current

IR

5

uA

VR=5V

*Luminous Intensity is measured by ZWL600.

*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

- Packing -

- Application -

- Related UV LED -

- Production -

- Use -

smd led

Send your message to this supplier

* From:
* To:

Ms. Amy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Purple UV LED , Purple UV SMD LED , 365nm UV SMD LED

Parameter	Symbol	Rating
Power Dissipation	Pd	100mw
Pulse Forward Current	IFP	100mA
Forward Current	IF	30mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	3.0		3.2	V	IF=20mA
		3.2		3.4
		3.4		3.6
		3.6		3.8
Luminous Intensity	IV	1		3	lm	IF=20mA
Peak Wavelength	λP	365		370	K	IF=20mA
		370		375
		375		380
Half Width	Dl		18		nm	IF=20mA
Viewing Half Angle	2q1/2		±60		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
