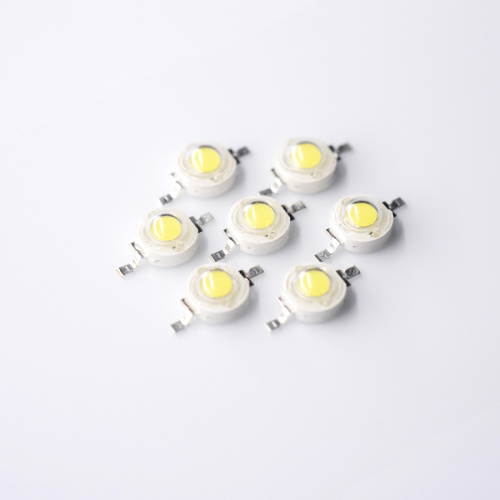

High Power 6000K White LED 1W 350mA 160lm

High Power 6000K White LED 1W 350mA 160lm

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- Super Bright White LED Lamps-

8080WC-60K160L1W

This SMD LED high-power white lamp 160-170LM, positive working current 350MA, voltage 3.0-3.4V, color temperature 6000K, luminous angle 120 degrees. SHENZHEN BEST LED OPTO-ELECTRONIC COMPANY LIMITED specialized in most of light emitting diode and all of them can meet the CE, RoSH, EN62471 certification. On the other hand, Best LED also offers a large selection of through-hole LED lamps to choose from, for instance: 3mm round top LED, 5mm round top through-hole LED, rectangular blue LED with size like 2*3*4mm and 2*5*7mm ect. We can even produce custom-made through-hole LEDs with different color combinations, viewing angles, sizes, shapes, brightness and lens type. You can choose any one of them for your design. White rectangular LED are widely used for different kinds of electronic products or the LED indicator, LED back light and it also work perfect for your DIY project. Do you need some white rectangle LED lamps? Contact us now! If you cannot finding what you need in our website, just feel free to contact us~

6000K White LED 1W

- Size: 8mm*H5.4mm

- Pin length: 1.3mm

- Color: White LED

- Lens type: Clear

- Chip brand: Epistar

- Different color are available

- Warranty: 5 Years

- Different wavelength are available

- RoHS, REACH, EN62471

- Uniform light output

- Low Power consumption

- Long life-solid state reliability

- Anti UV epoxy resin package

- High temperature resistance

- Dimension Parameters -

1W LED

*This SMD LED package are also available in UV LED, Amber LED, Yellow LED ect.*

- Emitting Color -

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	1000mW
Pulse Forward Current	IFP	1000mA
Forward Current	IF	350mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF

3.0

3.4

V

IF=350mA

Luminous Flux

Φ

160

170

lm

IF=350mA

Color Temperature

TC

6000

6500

k

IF=350mA

Color Rendering Index

Ra

70

IF=350mA

CIE 1931 Coordinate

XY

X:0.33

Y:0.32

IF=350mA

Half Width

Dl

20

nm

IF=350mA

Viewing Half Angle

2q1/2

±60

deg

IF=350mA

Reverse Current

IR

10

uA

VR=5V

Rise Time

Tr

25

ns

IF=350mA

Fall Time

Tf

13

ns

IF=350mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

- White LED Temperature -

- Packing -

- Application -

- Related White LED -

- Production -

- Attention -

smd led

Send your message to this supplier

* From:
* To:

Ms. Amy
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

High Power 6000K White LED , 6000K White LED 1W , High Power White LED 6000K

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	3.0		3.4	V	IF=350mA
Luminous Flux	Φ	160		170	lm	IF=350mA
Color Temperature	TC	6000		6500	k	IF=350mA
Color Rendering Index	Ra	70				IF=350mA
CIE 1931 Coordinate	XY		X:0.33 Y:0.32			IF=350mA
Half Width	Dl		20		nm	IF=350mA
Viewing Half Angle	2q1/2		±60		deg	IF=350mA
Reverse Current	IR			10	uA	VR=5V
Rise Time	Tr		25		ns	IF=350mA
Fall Time	Tf		13		ns	IF=350mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
