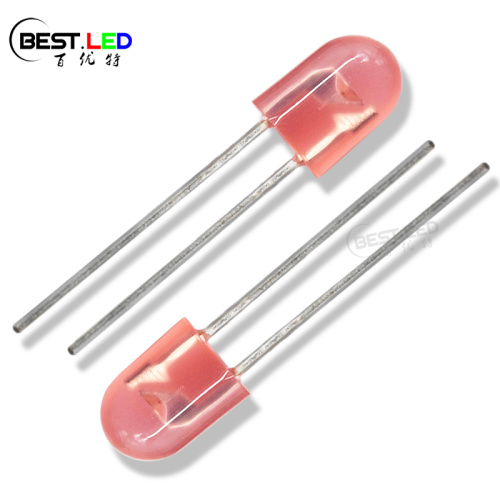

Ultra bright 5mm Red Oval LED without Stopper

5.2x3.8mm Oval-shaped LED Red Color Diffused Lens ;

This 546FRD62D3L14 are the brightest diffused red oval LED in our factory. If you need some LED screens, LED display(indoor or outdoor) with super bright light and stable performance. Just check with this 546FRD62D3L14. There are red diffused lens to cover the chip, then the LED Lamps will emits red diffused light for the lighting project. And the pins have no stopper, which will easy to install on the PCB board. If you need more detail about that, just feel free to contact us~

Electrical Parameters:

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

5mm Oval-shaped LED Dimension:

*This size are also available in Red through-hole LED, Yellow LED, Amber LED, Green Through-hole LED and blue through-hole LED*

Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;

Production progress:
