Side View Emitting LED Super Bright 850nm LED

Side View Emitting LED Super Bright 850nm LED

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

Side Emitting LED SMD with 850nm LED;

Compare with 3015IRC-85L12I60, this 3025IRC-85L14I100 have a bigger chip inside of SMD LED case. So that it can make a bigger output than 3015IRC-85L12I60, which is 20-40mw/sr. And at the same time this 850nm LED can also handle 100mA operation current in the circuit. Interestingly, this 3014 SMD LED can be used in two ways, one for top view IR LED and other is side view IR LED. Beucase the soldering pad of this LED are on the size and bottom of SMD LED. You can adjust it as your application when you using it.

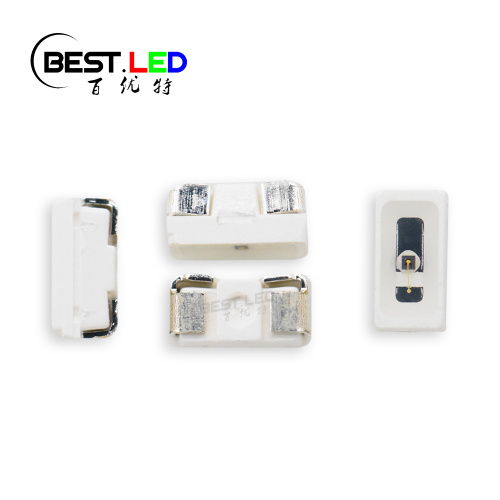

3015IRC-85L14I100 Side View Emitting LED IR LED 850nm LED Infrared LED

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Forward Current	IF	100	mA
Forward Voltage	V	1.4-1.6V	V
Luminous Intensity	IV	20-40	mw/sr
Wavelength	λP	850nm	nm
Packing	Piece	4000	reel
Vewing angle	2θ1/2	120	Deg
