Side Emitting LED IR LED 850nm SMD LED

Get Latest Price

Min. Order:: 4000 Piece/Pieces

Min. Order:: 4000 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

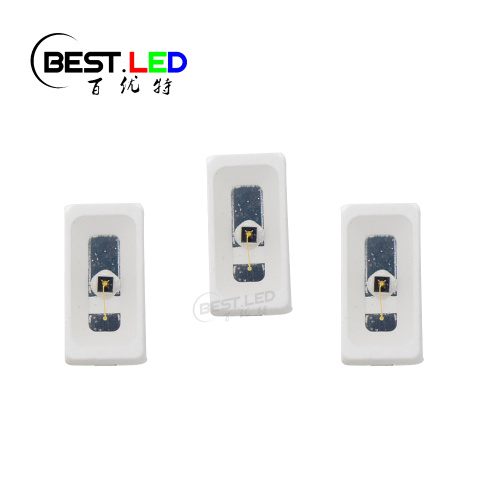

SMD 3014 LED with 850nm LED;

850nm IR LED can be produce with SMD LED type and LED Lamps type. In this 3025IRC-85L12I60, we produced it with the case of 3014 SMD LED, in this 3014 LED case, this SMD LED can be top view SMD LED or side emitting LED because the pad of LED are on the side and bottom. When you soldering the bottom pad, this IR LED will be top view SMD LED. And if you use the side pad, then this 850nm LED will emits the light from the side of PCB board. Gold wire, high quality epoxy and LED frame, stable chip all this material will get this side view LED a longer life for your project.

3015IRC-85L12I60 Side Emitting LED IR LED 850nm LED SMT

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Forward Current	IF	60	mA
Forward Voltage	V	1.4-1.6V	V
Luminous Intensity	IV	10-20	mw/sr
Wavelength	λP	850nm	nm
Packing	Piece	4000	reel
Vewing angle	2θ1/2	120	Deg
