- SMD RGB LED -

1204RGBWW

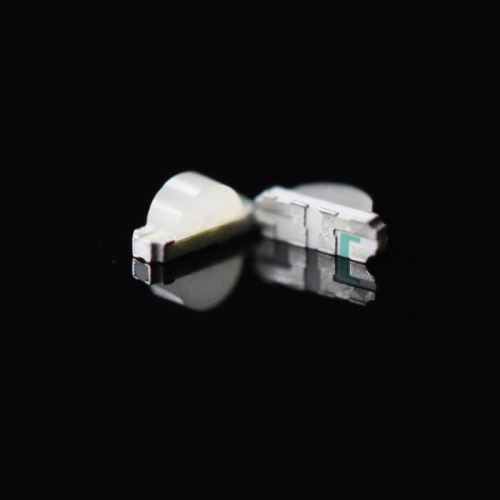

These small size RGB LED have a little lens on the top of the LED, which can make the SMD RGB LED got more diffused lens. On the other hand, because of the samll size, this RGB LED can be easier to fit any kinds of small PCB size for lighting or indicator. There have four lead on the bottom of the SMD RGB LED. You can light up any kind of color of this LED by pass the current through the leads. Do you need some small RGB LED for your project? Contact us now!

RGB LED 1204

- Size: 3.2mm*1.5mm*1.0mm

- Chip Number: 3 chip

- Color: RGB

- Type: Surface mount device

- Chip brand: Sanan

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

smt rgb led

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating
Parameter	Symbol	Red	Green	Blue
Power Dissipation	Pd	50mw	70mw	70mw
Pulse Forward Current	IFP	100mA	100mA	100mA
Forward Current	IF	30mA	30mA	30mA
Reverse Voltage	VR	5V	5V	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter		Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	Red	VF	1.9	2.0	2.4	V	IF=20mA
	Green		2.8	3.1	3.4
	Blue		2.8	3.1	3.4
Luminous Intensity	Red	IV	80		120	mcd	IF=20mA
	Green		300		500
	Blue		80		120
Peak Wavelength	Red	λP	620	625	630	nm	IF=20mA
	Green		520	530	535
	Blue		465	470	475
Half Width	Red	Dl		18		nm	IF=20mA
	Green			25
	Blue			18
Viewing Half Angle		2q1/2		±60		deg	IF=20mA
Reverse Current	Red	IR			5	uA	VR=5V
	Green				5
	Blue				5
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
