Rectangular through-hole LED White DIP LED Lamps；

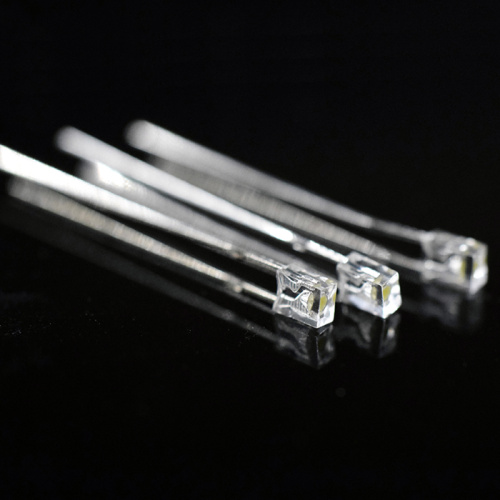

For rectangular white LED, there have kinds of size and shape, such as 2x5x7 through-hole LED size with clear lens or diffused lens. Today we going to put this white through-hole LED with just 2x3x4 case. Which is smaller than 2x5x7 LED Lamps. If you need some small size rectangular white LED with super brightness, 234WC-8 will definitely zing your project. First, this Rectangular White Through-hole LED got a bigger chips, which means it can handle more operation current and emits more brightness than 234WC-7 or 234WC. In addition, we produce this white through-hole LED with a clear lens that can make sure the LED bright won't be able to block in the lens. And different with round top through-hole LED, this rectangular LED will got a different lighting spot that same as its lens. If you looking for some special lighting spot in your project. Take some of this for it~

-Dimension Parameters -

These through-hole LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
