- Rectangular White Through-Hole LED -

234WC

This 324WC was packaged bu clear lens and can emits white color. The viewing angle is 110 degree. In our life, these white rectangle white LEDs are widely use in white LED display, toy LED display, LED black light, The LED display on the bottom of the TV ect. There have two kinds of LED white LED display: warm white LED display and cool white LED display. You can totally design the LED display color as you need it to be. For the rectangle shape of the LED, there also have kinds of size for your choose: 1*3*4 mm rectangle LED,2*5*7 mm rectangle LED,2*5*5 mm rectangle LED,5*5*7 mm rectangle ect. Different color for rectangular LEDs such as: 625nm red Rectangular LEDs, 590nm yellow Rectangular LEDs, 465nm blue Rectangular LEDs, 520nm green Rectangular LEDs, 608nm orange Rectangular LEDs, 495nm cyan Rectangular LEDs, 500nm traffice green Rectangular LEDs, 660nm deep red Rectangular LEDs, 420nm purple Rectangular LEDs, 570nm Rectangular LEDs ect. Bi-color rectangular LEDs, RGB Rectangular LEDs,This family of LEDs, from China, are in through-hole rectangular packages.

-Dimension Parameters -

These through-hole LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

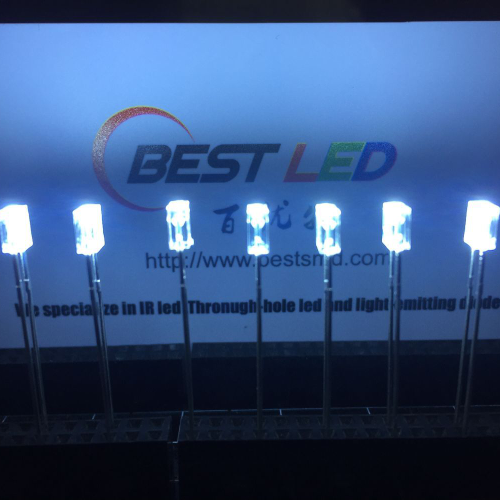

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
