- 660nm LED -

132FRC66P1L12

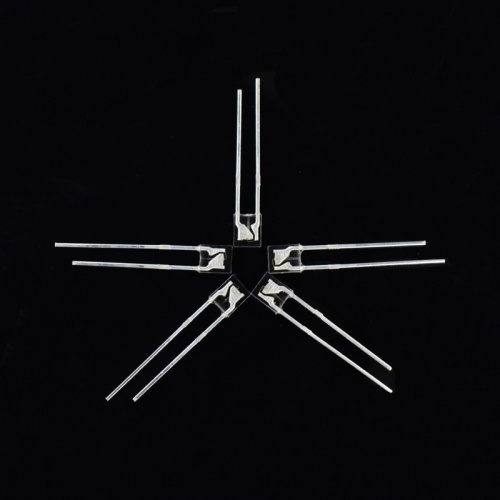

For most of our through-hole LED, the lighting spot is a round shape. There can't be like all the project will just need the round shape lighting result. So there we are: we packaged this 660nm LED chip with thinnest rectangle through-hole LED case. The light through the rectangle lens will change lighting result. When we packaged this with rectangle top shape. This LED will got a rectangular lighting spot when it's working. If you need some rectangular LED with 660nm wavelength. Then this one won't let you disappointment. Contact us for more detail about it!

660nm LED

- Size: 1mm*3mm*1mm High

- Pin length:

- Color: 660nm LED

- Type: clear

- Chip brand:e Epistar

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

134mm 620nm LED

*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter

Symbol

Rating

Power Dissipation

Pd

120mw

Pulse Forward Current

IFP

100mA

Forward Current

IF

60mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

115°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

3000v

Warranty

Time

5Years

Antistatic bag

Piece

1000Bag

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.8	1.9	2.4	V	IF=20mA
Luminous Intensity	IV		0.8	1.2	lm	IF=20mA
Luminous Intensity	IV	2		3	lm	IF=50mA
Peak Wavelength	λP	655	660	665	nm	IF=20mA
Dominant Wavelength	λd		650		nm	IF=20mA
Half Width	Dl		22		nm	IF=20mA
Viewing Half Angle	2q1/2		±60		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

*In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package this LED with 1000pcs in a bag Normally. We also can package it as your requirement.

- Application -
