620nm Red LED Mini Tombstone Through-hole LED Lamp

620nm Red LED Mini Tombstone Through-hole LED Lamp

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

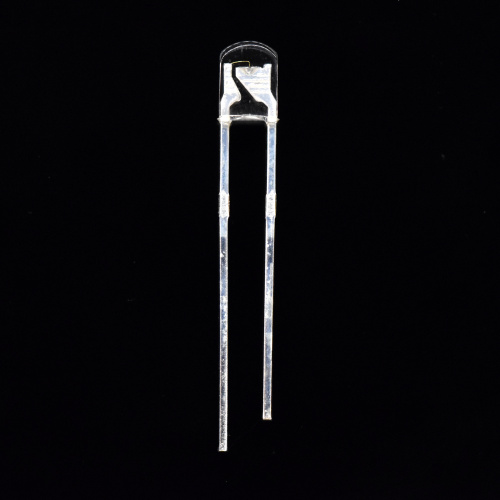

- Rectangular Red Through-Hole LED -

6242FIRC62D3L14

A solid-state semiconductor device. The heart of an LED is a semiconductor wafer. One end of the wafer is attached to a bracket, one end is the negative electrode, and the other end is connected to the positive electrode of the power supply. Also called LED light emitting chip, it is the core component of LED light, which is also referred to as P-N junction. Its main function is to convert electrical energy into light energy, and the main material of the chip is single crystal silicon. A semiconductor wafer consists of two parts, one is a P-type semiconductor, where holes dominate, and the other end is an N-type semiconductor, where electrons are mainly. But when these two semiconductors are connected, a P-N junction is formed between them. When a current is applied to the wafer through a wire, the electrons are pushed to the P region, where the electrons and holes recombine, and then the energy is emitted in the form of photons. This is the principle of LED light emission. The wavelength of light, which is the color of light, is determined by the material that forms the P-N junction.

234 rectangle RED LED

- Size: 2mm*3mm*4mmHigh

- Pin length: 17mm 19mm

- Color: Red LED

- Lens type: red

- Chip brand:Epileds

- Different color are available

- Warranty: 5 Years

- Different wavelength are available

- RoHS, REACH, EN62471

- Uniform light output

- Low Power consumption

- Long life-solid state reliability

- Anti UV epoxy resin package

- High temperature resistance

- Dimension Parameters -

625 nm LED

. All dimensions are in millimeters ; 2. Tolerance is ± 0.10 mm unless otherwise noted.

*This case are also available for UV LED, Yellow LED, White LED, blue through-hole LED, red through-hole LED, IR LED ect.*

- Emitting Color -

* Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	105mw
Pulse Forward Current	IFP	100mA
Forward Current	IF	30mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.8		2.0	V	IF=20mA
		2.0		2.2
		2.2		2.4
Luminous Intensity	IV	800		1100	mcd	IF=20mA
Peak Wavelength	λP		633		nm	IF=20mA
Dominant Wavelength	λd	620	625	630	nm	IF=20mA
Half Width	Dl		18		nm	IF=20mA
Viewing Half Angle	2q1/2		±60		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
