- Rectangular RED Through-Hole LED -

254URD

252FRD is solid state lamps within a radial lead rectangular epoxy package. A tinted, diffused epoxy provides high on-off contrast and a flat high intensity emitting surface. This range of LEDs offer an uniterrupted light output due to a borderless package design. we uses a double heterojunction (DH) absorbing substrate (AS) aluminum gallium arsenide (AlGaAs) red LED chip in a light red epoxy package. Together they produce a strong light output over a wide range of drive currents.Rectangulal red through-hole led uses a high efficiency red GaAsP on GaP LED chip in a light red epoxy package.The 234FYD provides a yellow GaAsP on GaP LED chip in a yellow epoxy package.The 252LGD provides a green GaP LED chip in a green epoxy package. Features of the 252FRD, 252FYD and 252LGD series:1. Rectangular light emitting surface;2.Flat high sterance emitting surface;3.Ideal for flush mounted panel indicators;4.Ideal for backlighting legends;5. Long life: solid state reliability;6. IC compatible / low current requirements;7.Visible Light LEDs.There have kinds of blue LED shape for your choose, for instance: 3mm round top blue LED, 5mm round top through-hole LED, 2835 blue SMD LED, 5730 Blue LED, rectangular blue LED with size like 2*3*4mm and 2*5*7mm ect. You can choose any one of them for your design. Blue rectangular LED are widely used for different kinds of electronic products or the LED indicator, LED backlight and it also work perfect for your DIY project. Do you need some RED LED? Contact us now!

red led

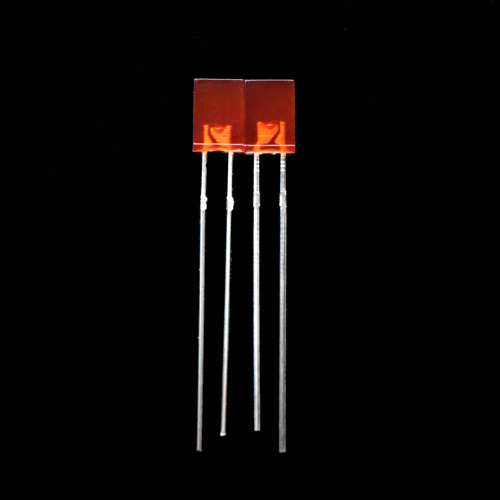

- Size: 2mm*5mm*7mm High

- Pin length: 27mm

- Color: Red LED

- Lens type: Red diffused

- Chip brand: Epistar

- Different color are available

- Warranty: 5 Years

- Different wavelength are available

- RoHS, REACH, EN62471

- Uniform light output

- Low Power consumption

- Long life-solid state reliability

- Anti UV epoxy resin package

- High temperature resistance

- Dimension Parameters -

257 led

. All dimensions are in millimeters ; 2. Tolerance is ± 0.10 mm unless otherwise noted.

*This case are also available for UV LED, Yellow LED, White LED, blue through-hole LED, red through-hole LED, IR LED ect.*

- Emitting Color -

* Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	75	mW
Pulse Forward Current	IFP	100	mA
Forward Current	IF	30	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	°C
Operating Temperature	Topr	-40 ~ +80	°C
Storage Temperature Range	Tstg	-40 ~ +100	°C
Soldering Temperature	Tsol	260	°C
Electro-Static-Discharge(HBM)	ESD	2000	V
Warranty	Time	5	Years
Anti-static bag	Piece	1000	Back

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol		Min	Typ		Max	Unit	Test Condition
Forward Voltage	VF	1.8		2.0	2.4		V	IF=20mA

Luminous Intensity

IV

300

500
mcd

IF=20mA

Peak Wavelength

λP

635

nm

IF=20mA

Dominant Wavelength

λD

620

625

630

nm

IF=20mA

Half Width

Dl

15

nm

IF=20mA

Viewing Half Angle

2q1/2

±55

deg

IF=20mA

Reverse Current

IR

5

uA

VR=5V

Rise Time

tr

10

ns

IF=20mA

Fall Time

tf

10

ns

IF=20mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
