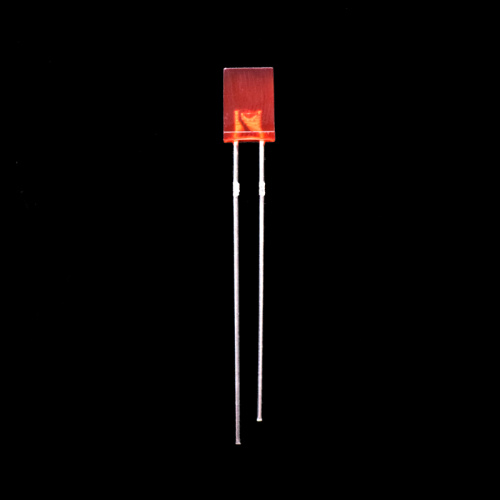

- Rectangular RED Through-Hole LED -

254FRD

2×5×7mm rectangle through-hole LED lamp have a bigger emitting size than 2×3×4mm rectangle LED. But 2×3×4mm do have smaller size, which is better for fit in small LED lighting project. Best LED also have other through-hole LED for your choose: shapes, sizes, brightness, color ect. Browse our website, if you cannot find the one that you need, just feel free to let us know and we will produce it as your requirement.

Rectangle red led

- Size: 2mm*5mm*7mm High

- Pin length: 27mm

- Color: Red LED

- Lens type: Red diffused

- Chip brand:Epileds

- Different color are available

- Warranty: 5 Years

- Different wavelength are available

- RoHS, REACH, EN62471

- Uniform light output

- Low Power consumption

- Long life-solid state reliability

- Anti UV epoxy resin package

- High temperature resistance

- Dimension Parameters -

257 led

. All dimensions are in millimeters ; 2. Tolerance is ± 0.10 mm unless otherwise noted.

*This case are also available for UV LED, Yellow LED, White LED, blue through-hole LED, red through-hole LED, IR LED ect.*

- Emitting Color -

* Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	80	mW
Pulse Forward Current	IFP	100	mA
Forward Current	IF	30	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	°C
Operating Temperature	Topr	-40 ~ +80	°C
Storage Temperature Range	Tstg	-40 ~ +100	°C
Soldering Temperature	Tsol	260	°C
Electro-Static-Discharge(HBM)	ESD	2000	V
Warranty	Time	5	Years
Anti-static bag	Piece	1000	Back

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol		Min	Typ		Max	Unit	Test Condition
Forward Voltage	VF	1.8		2.0	2.4		V	IF=20mA

Luminous Intensity	IV	900		1200	mcd	IF=20mA
Peak Wavelength	λP		635		nm	IF=20mA
Dominant Wavelength	λD	620	625	630	nm	IF=20mA
Half Width	Dl		15		nm	IF=20mA
Viewing Half Angle	2q1/2		±55		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	tr		15		ns	IF=20mA
Fall Time	tf		15		ns	IF=20mA

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -
