3W High Power RGBW LED with Domed Lens

Red, Green, Blue and White 4 chips RGBW LED;

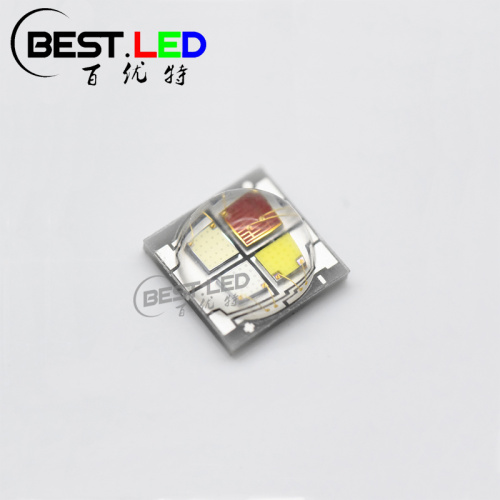

5050WBGR-40 is high power RGBW LED with 4 chips inside. There have 8 pads on the bottom of SMD LED so that we can control the lighting color as your project. In order to emits more brightness, this high power RGB LED can handle much more operation current. On the other hand, there also have a domed lens on the top, which can get together all the light in the centre.

Features:

Chips: Red chip + blue chip + green + white High power chip;

High reliability and high raditaion intensity;

RoHs standard;

Electrical Parameters:

*Soldering condition: Soldering condition must be completed with 3 seconds at 260℃

Product Detail:

We produce this LED with 5050 SMD LED red copper LED frame as holder and package, 99.99% pure gold wire for inside circuit conntection, high quality stable chip for lighting inside and high refractive index epoxy to cover in surface. For this RGBW LED, we also adding 2 zener diodes inside the circuit to protect the LED chip from high voltage and static electricity;

Main Application:

LED Backlight, Indicator light, LED toy, LED flexibel strip;

HANDLING PRECAUTIONS:

Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible Althouth its characteristiec significantly reduces thermal stress, it is more susceptible to damage by extemal mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated Led products. Failure to comply might lead to damage and premature failure of the led

1. Handle the component along the side surfaces by using forceps or appropriate tools.

2, Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.

3, Do not stack together assembled PCBS containing exposed LEDs. Impact may scratch the silicone lens or damage the internal circuitry.

4, 4-A The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks;

    4-B A plible material is suggested for the nozzle tip to avoid acratching or damaging the LED surface during pickup.

    4-C The dimension of the component must be accurately programmed in the pick-and-place machine to insure precise pickup and avoid damage during production;

    4-D As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plationg of leadframe. Special care should be taken if an LED with silicone encapsulation is to used near such substances.

5, Please aviod continued exposure to the condensing moisture environment and keep the product away from repid transitions in ambiemt temperature.

6, Product in the original sealed package is recommended to be assembled within 24 hours of opening.
