Super Bright 5mm Orange LED 610nm without Collar

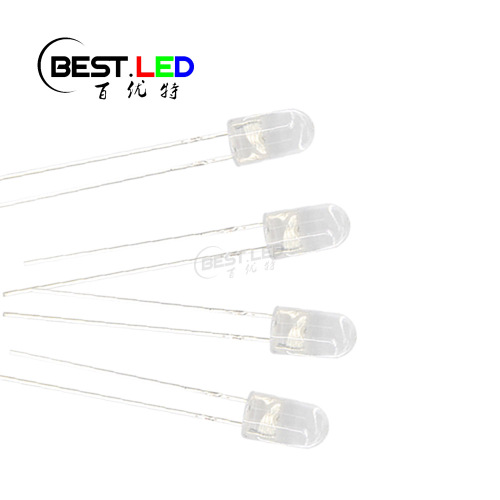

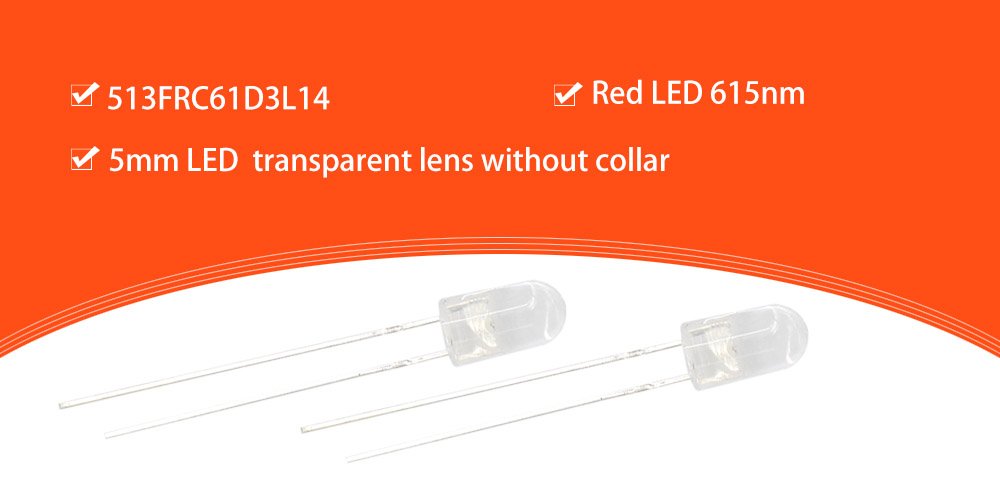

There are kinds of 5mm LED available in our factory. We going to show the 5mm LED with a transparent lens without collar in this page. This 5mm LED Lamps offers a combination of high brightness, energy effciency, durability and versatility. In most of key point, this 513FRC61D3L14 looks like the same as the other 5mm super bright orange LED. The only different is the "collar" on the bottom of LED lens. It's a edge on the epoxy lens on the bottom, common 5mm LED (amber LED, UV LED, 5mm green through-hole LED, yellow led) will got this edge. However, for some project, people just don't need this edge to stuck on the PCB board. Then we will produce this 513FRC61D3L14 with totally cylindrical shape. Then people can intal it on the PCB without any stuck.

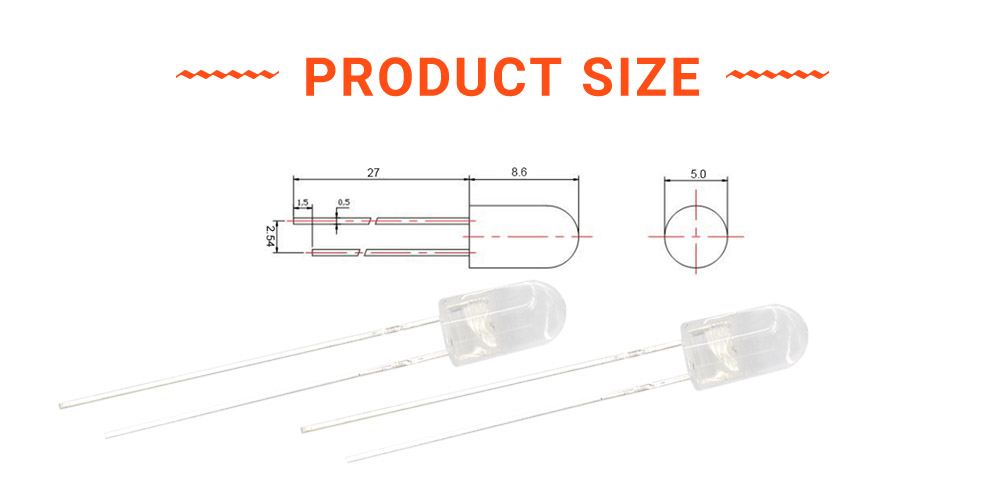

Size of 5mm cylindrical LED:

Electrical Optical Characteristics(Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward voltage	VF	1.8	2.0	2.4	V	IF=20mA
Luminous Intensity	IV	20000		30000	mcd	IF=20mA
		40000		50000	mcd	IF=50mA
Peak wavelength	λP		605		nm	IF=20mA
Dominant wavelength	λd	605	610	615	nm	IF=20mA
Half width			14		nm	IF=20mA
Viewing angle			+/-10		deg	IF=20mA
Reverse current	IR			5	UA	VR=5V
