Ultra Bright 5mm Orange LED Lamp Clear Lens

Ultra Bright 5mm Orange LED Lamp Clear Lens

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 5mm Red Through-Hole LED -

503FOC60D3L14

These awesome LED not only application in the LED lighting application but also with some LED lighting fiber ect. Do you need some ultra bright red LED lamp？ Please contact us for more information. 503FOC62D3L14 is a brightest orange thoruhgh-hole LED with 5mm lens size in the LED industry. If you need some ultra bright red LED lamp, this one is dope. On the other hand, the viewing angle of the LED lamp can also effect the emitting light. In this case, you can also ask for different viewing angle for your application, normally, the more small angle you got, the longer emitting distance you get in this 5mm orange LED lamp.

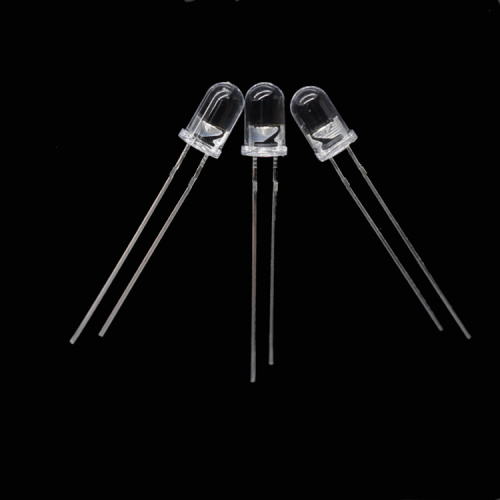

503FOC62D3L14 5mm orange LED Lamp

- Size: 5mm Diameter 8.7mm High

- Pin length: 29mm

- Color: Orange LED

- Type: Clear

- Chip brand: Epistar

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

5mm orange led size

*1. All dimensions are in millimeters ; 2. Tolerance is ± 0.20 mm unless otherwise noted.

These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	70	mW
Pulse Forward Current	IFP	100	mA
Forward Current	IF	≤70	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	°C
Operating Temperature	Topr	-40 ~ +80	°C
Storage Temperature Range	Tstg	-40 ~ +100	°C
Soldering Temperature	Tsol	260	°C
Electro Static Discharge(HBM)	ESD	2000	V
Service life under normal conditions	Time	80000	H
Warranty	Time	5	Years
Antistatic bag	Piece	1000	Bag

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.8	2	2.4	V	IF=20mA
Luminous Intensity	IV	18000		28000	mcd	IF=20mA
Peak Wavelength	λP		605		nm	IF=20mA
Dominant Wavelength	λd	600	603	612	nm	IF=20mA
Half Width	Dl		14		nm	IF=20mA
Viewing Half Angle	2q1/2		±10		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
