- Outdoor Application Led Lamps -

5462FOD

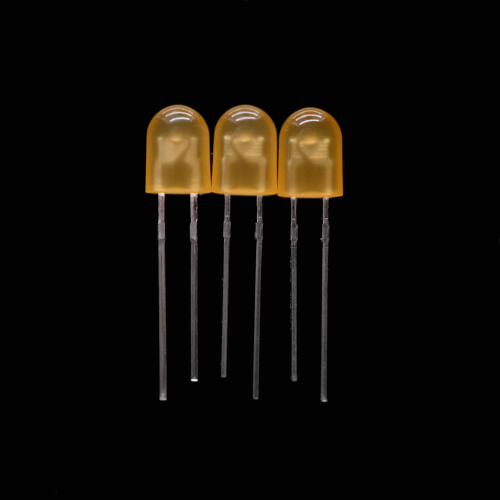

5.2x3.8mm elliptical LED lamps as BESTLED replacement for professional outdoor lighting. Oval 5mm led lamp.(1) Dimension(mm): 5.2*3.8*7.0mm (2) Colors: red,amber,green,blue. (3) Wavelength(nm): Red: 620-630 Amber: 585-595 Orange:600-610nm Green: 520-530 Blue: 460-470 (4) Luminious intensity: Red: 800-1200mcd/70+30deg; 600-900mcd/70+30deg Amber: 900-1500mcd/70+30deg; 355-750mcd/70+30deg Green: 1300-1900mcd/70+30deg; 3500-4500mcd/70+30deg Blue: 245-425mcd/70+30deg; 600-1000mcd/70+30deg (5) Forward Voltage : Red: 1.7-2.4v Amber: 1.7-2.4v Green: 2.8-3.6v Blue: 2.8-3.6v (6)Forward current: 20 mA (7) Inner packing: antistatic bag Out packing: carton (8)Product application: Indoor/outdoor display Interior automotive lighting e.g. dashboard backlight. Variable message signs General lightings e.g. pixel lamps, beehive lamps, led bars.This orange oval through-hole LED was largely used in LED indicator, LED bill board ect. We packaged this orange through-hole LED with oval diffused orange lens. Orange diffused case make this LED emits soft and diffused, even when the LED didn't working, these LED still can be easy to distinguish the color. On the other hand, this orange LED got a two lead for the circuit, just need to pass the current through the LED pins, it will be light up. Which is easy to use by DIY LED project. Do you need some orange rectangular LED for your project? Contact us now~

*1. All dimensions are in millimeters ;           2. Tolerance is ± 0.10 mm unless otherwise noted.

Blue through-hole LED, IR LED with 5mm water clear lens.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

- Golden Wire Connection -

- Packing -

- Related UV LED -

- Production -

- Use of Attention -
