- Rectangular Orange Through-Hole LED -

232FOD

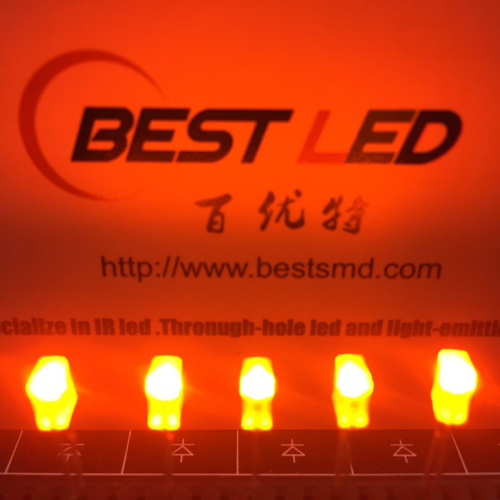

 232FOD is a super bright orange LED light diode that made by LED Material :GaP.S. Brightness is 600-800 mcd. Compare with the high brightness LED, this one got a higher brightness. Using counter electrode chip production, stable performance can be achieved. Small LED with dual in line package. We package this LED chip with orange diffused and rectangle epoxy lens. Compare with 3mm through-hole LED, 234 rectangle through-hole LED have a large viewing angle. Rectangle LED voltage is 1.8-2.4V and the brightness is 50-150mcd. Viewing angle 110° ,The rectangular series of LEDs, from BESTLED, are reliable and rugged devices in a rectangular package. These LEDs offer excellent uniformity of light output, low power consumption and they have a long life time from solid state reliability. The rectangular LEDs are suitable for level indicators and are I.C. compatible.

- Dimension Parameters -

. All dimensions are in millimeters ;  2. Tolerance is ± 0.10 mm unless otherwise noted.

*This case are also available for UV LED, Yellow LED, White LED, blue through-hole LED, red through-hole LED, IR LED ect.*

- Emitting Color -

* Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

                                                                                    Absolute Maximum Ratings At Ta=25℃

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

*Luminous Intensity is measured by ZWL600.

*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
