Product Description

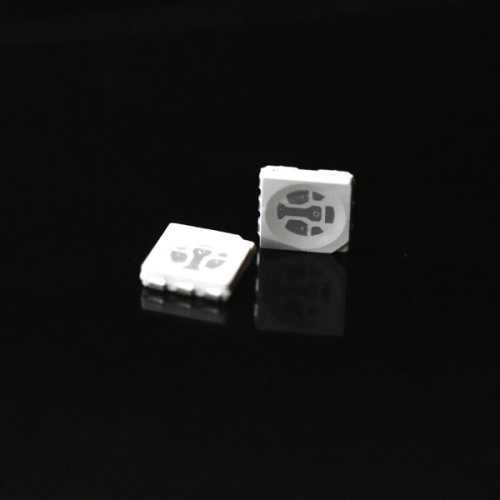

- 5050 RGB LED -

5050-3-03-RGBW

5050-3-03-RGBW was packaged with three LED inside. If you just need some 5050 RGB with very competitive price for your project, please contact us for more detail about it. Free sample are available~ As we know, 5050 SMD LED case can be package in different kinds of LED bare die for different application. Such as 5050 RGB LED which can emits red, green and blue three color(of course you can control it with an IC to achieve multi color), 505 RGY LED, which can emits red, green and yellow LED ect. Every product have their own special advantage. As we know, RGB LED can be used in so many different area, such as lighting, decorating ect. For some application, such as some kind of FMCG area, some product do not require a high standard but just need a very competitive price then this 5050-303RGBW will be the best choose for this! There have three chips LED which can emits different color.

Three LED - 5050 SMD LED

- Size: 3.5*2.8*1.9mm

- Chip Number: 3chips

- Color: RGB LED

- Type: Surface mount device

- Chip brand: Epistar

- Polarity mark cathode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters-

5050-3-03-RGBW

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

- Electrical Parameters -

Parameter	Symbol	Rating			Unit
		Red	Green	Blue

Power Dissipation	Pd	60	100	100	mw
Pulse Forward Current	IFP	100	100	100	mA
Forward Current	IF	30	30	30	mA
Reverse Voltage	VR	5	5	5	V
Junction Temperature	Tj	110			°C
Operating Temperature	Topr	-40 ~ +80			°C
Storage Temperature Range	Tstg	-40 ~ +100			°C
Soldering Temperature	Tsol	260			°C
Electro-Static-Discharge(HBM)	ESD	2000	2000	2000	V
Service life under normal conditions	Time	80000			H
Warranty	Time	2			Years
Antistatic	Piece	7500*3			Back

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage	Red	VF	1.8	2.0	2.4	V	IF=20mA
	Green		2.8	3.0	3.4
	Blue		2.8	3.0	3.4
Luminous Intensity	Red	IV	200		500	mcd	IF=20mA
	Green		600		1300		IF=20mA
	Blue		200		500		IF=20mA
Peak Wavelength	Red	λP		633		nm	IF=20mA
	Green			527
	Blue			462
Dominant Wavelength	Red	λD	618	620	626	nm	IF=20mA
	Green		515	525	530
	Blue		463	465	475
Half Width		Dl		18		nm	IF=20mA
Viewing Half Angle		2q1/2		±60		deg	IF=20mA
Reverse Current		IR			5	uA	VR=5V
