-Multi-Color LED Lamps  -

509URGBWD

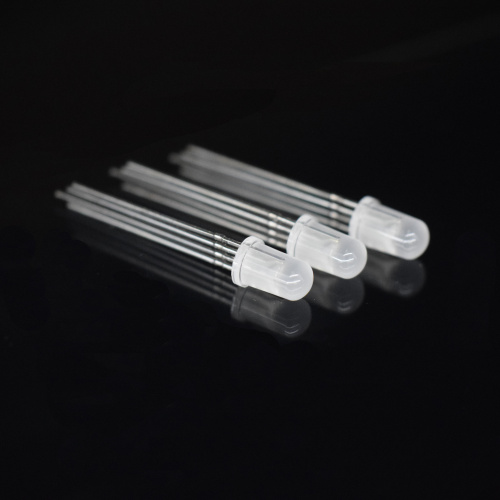

Multi-Color LED Lamps is 509URGBWD. Three chips are matched for uniform.The 509URGBWD LED lamps contain three integralchips and is available as both bi-color and bipolar types.Super Red and Super blue and Super green light is emitted by diodes of AlGaInP and AlGaInP.Type of bi-colar lamps are both white diffused and color diffused while the bi-color are white diffused.Sometime, we design a PCB board with red LED, blue LED and green LED for indication or other lighting result. In these case, one single 509URGBWD can completely replace three single color LED. As you can see in the picture as follow, there have four pins on bottom of the lens. The longest pins polarity mark cathode and each of other connect with red, blue and green LED chip at anode. Which means all three color's LED chips share the same cathode polarity. On the PCB board, we can control all the color by different circuit. On this 5mm through-hole rgb led, we can control the color by adding a IC in the circuit. With this way, you can control this RGB LED change the color from red, green and blue to purple, yellow, orange, white ect. We packaged this 5mm RGB LED with white diffused epoxy, which can make this RGB LED have a diffused and soft lighting result. Do you want to try some? Contact us now!

-Dimension Parameters -

These through-hole LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

- Golden Wire Connection -

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Related RGB  LED -

- Production -

- Use -
