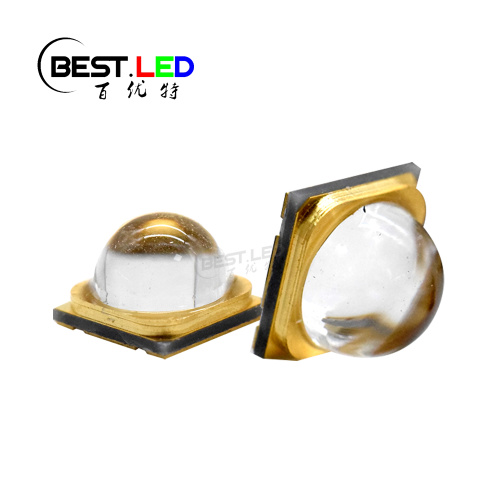

High Power LED Blue 460nm LED Emitters

Get Latest Price

Min. Order:: 1000 Piece/Pieces

Min. Order:: 1000 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000000000
Supply Ability:	1000000000000
Payment Type:	T/T,L/C,Paypal
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO:9001
HS Code:	8541410090
Transportation:	Ocean,Land,Air,Express
Port:	SHENZHEN

Product Description

Today we discussed about the 6565UBC46P45, which is a High Power LED with Blue SMD LED in 460nm wavelength. The comment SMD LED will just package with 2835 SMD LED, 5050 SMD LED or even smaller size such as 0603 SMD LED, 1206 SMD LED ect. In this case, a package size of 6.5x6.5mm and current rating of 1400mA stand out as a remarkable innoation. With the ultra brightness, energy effiiency and compat size, these Dome Lens SMD LED are widely use in different area.
From general lighting to automotive and display signage, this LED has opened up new possobilities in lighting design and energy conseration. As technology continues to advance, the high power blue SMD LED will undoubtedly play a crucial role in shaping the future of lighting.

Package size of high power LED:

Size of 6565UBC46P45 High Power LED Blue 460nm LED 465nm LED

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	12	w
Pulse Forward Current	IFP	2000	mA
Forward voltage	IF	≤1000	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	245	℃
Electro-Stati-Discharge(HBM)	ESD	1000	V
Service lige under normal conditions	Time	60000	H
Warranty	Time	2	Years
Antistatic bag	Piece	1000	Bag

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	6	7	8	V	IF=1400mA
Total Radiated Power	PO	3000	-	4000	mw	IF=1400mA
Dominant Wavelength	λp	460 470			nm	IF=1400mA
Half Width	λ△		50		nm	IF=1400mA
Viewing Half Angle	θ1/2		60		deg	IF=1400mA
Reverse Current	IR			5	uA	VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
