P4 Power LED Type 940nm 3W High Power

Get Latest Price

Transportation:: Express, Air, Land, Ocean

Port:: shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000000000000
Supply Ability:	1000000000
Payment Type:	Others
Incoterm:	FOB,CIF,EXW,FCA
Certificate:	ISO:9001
HS Code:	8541410090
Transportation:	Express,Air,Land,Ocean
Port:	shenzhen

Product Description

8080FIRC94L42I1AJ is a high power series that designed for high current operatin and high flux output applications.
As long as you see the 8080 number in front of our part number, that will referes to a high power LED in our factory. In this 940nm LED,
we package it with black case. As we can see from the picture as follow, there are the black case for this high power LED,
which can make sure this IR LED can work better for spy cameras. Most of camera need flash LED around it to make sure
the camera got better view. With black case, this 940nm LED will not be easy to see in the dark night.

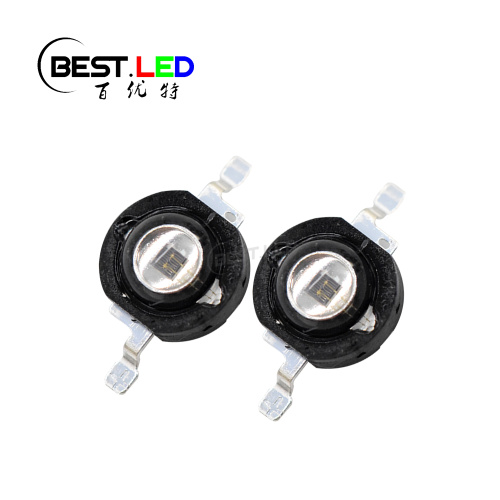

P4 Power LED Type 940nm 3W IR LED Black case

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	2200	mw
Pulse Forward Current	IFP	4000	mA
Forward voltage	IF	≤1000	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	150	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	1000	V
Service lige under normal conditions	Time	80000	H
Warranty	Time	2	Years
Antistatic bag	Piece	1000	Bag

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	1.4	2.0	2.1	V	IF=350mA
Total Radiated Power	PO	160 450	-	190 600	mw	IF=350mA IF=1000mA
Dominant Wavelength	λp	940 950 960			nm	IF=350mA
Half Width	λ△		50		nm	IF=350mA
Viewing Half Angle	θ1/2		60		deg	IF=1000mA
Reverse Current	IR			5	uA	VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Size of 940nm SMD LED:

size of P4 Power LED Type 940nm 3W High Power
