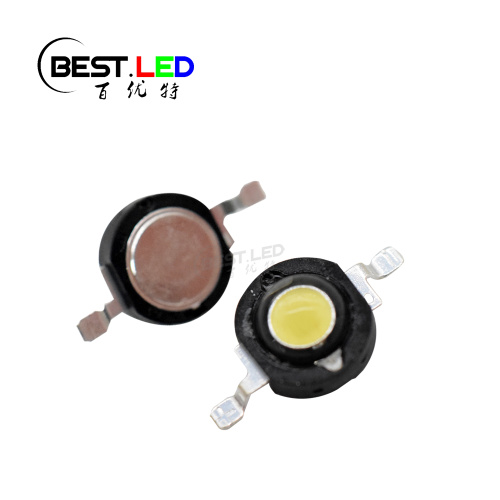

3W High Power Cool White LED Z-Power LED

3W High Power Cool White LED Z-Power LED

Get Latest Price

Min. Order:: 500 Piece/Pieces

Min. Order:: 500 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000000000
Supply Ability:	10000000000/month
Payment Type:	Paypal,T/T,Others
Incoterm:	FCA,FOB,CIF,EXW
Certificate:	ISO:9001
HS Code:	8541410090
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shenzhen

Product Description

8080CW80K250L1WJ is a high power white SMD LED that with balck package. Different with commom 3528 SMD LED, 3014 SMD LED, 3020 SMD LED ect. This SMD LED will got bigger size, which is 8mm diameter so that there have enough room in the package for bigger LED chip. As we all know, the bigger chip, the higher operation current, the brighter luminous. There will have different white color in White SMD LED such as : warm white LED, cool white, natural white or day white LED. All the color temperature of white LED are available in this SMD LED package. Now we just show the cool white LED in this page. As we tell before, this is a high power LED, which mean it can handle the operation current from 1mA to even 700mA(suggest max opperation current.) When we light it up with 350mA, this white LED can reach brightness as 100-140lm and when we increase the brightness to 700mA, the brightness can meet 220-280lm.

Electrical Parameters:

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	3000	mw
Pulse Forward Current	IFP	1000	mA
Forward voltage	IF	≤700	mA
Reverse Voltage	VR	5	V
Junction Temperature	Tj	100	℃
Operating Temperature	Topr	-40 - +80	℃
Storage Temperature	Tstg	-40 - +100	℃
Soldering Temperature	Tsol	260	℃
Electro-Stati-Discharge(HBM)	ESD	1000	V
Service lige under normal conditions	Time	60000	H
Warranty	Time	2	Years
Antistatic bag	Piece	1000	Bag

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

Parameter	Symbol	Min	Type	Max	Unit	Test Condition
Forward Voltage	VF	2.9	-	3.8	V	IF=350mA
Luminous Intensity	PO	100 220	-	140 280	lm	IF=350mA IF=700mA
Colo temperature	Tc	8000			K	IF=350mA
Half Width	λ△		25		nm	IF=350mA
Viewing Half Angle	θ1/2		120		deg	IF=700mA
Reverse Current	IR			5	uA	VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Size of White SMD LED:
