5050 RGBW SMD LED Red Green Blue White

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 5050 RGBW LED -

5050RGBW-12

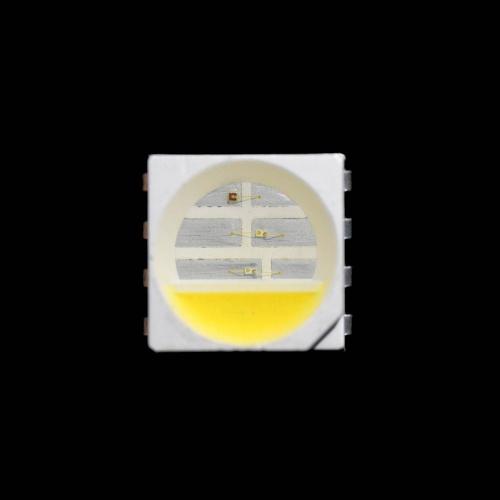

What is RGBW LED? A SMD LED that have red, blue, green and white color chip inside. Yes, normally the LED will have four position inside for the bare LED chip. In this 5050 SMD LED, we can put it with 4 kinds of chip. As we know, red, blue and green LED light can make white LED. With one more white color in this RGBW SMD LED, we can got a perfect and beautiful white color. This 5050RGBW-12 is a 5050 RGBW LED, which have 8 pins for the circuit connection, each side will got 4 pins and the mark side as anode. As we can see in the picture as follow, this SMD LED have a 4 position for the LED bare die inside of the LED. In this 5050 SMD LED, we packaged it with red, green, blue and white LED inside. There also have 4 pins in each side of SMD LED for electric connection and each pin are just for one single color. You can control it easily. Some people can also add a control IC in the circuit, so that it can control that lighting result as they need this RGBW LED to be. On the other hand, for this 5050 SMD LED case, since it have 4 position inside for the LED chip, so that we can put and package any kind of LED chip inside as your requirement. Do you want your own custom LED? Contact us now!

5050 RGBW LED

- Size: 5.0*5.0*1.3mm

- Chip Number: 3 chips

- Color: RGBW LED

- Type: Surface mount device

- Chip brand: Sanan

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

5050 rgbw

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating
Parameter	Symbol	Red	Green	Blue	White
Power Dissipation	Pd	50mw	70mw	70mw	200mw
Pulse Forward Current	IFP	100mA	100mA	100mA	300mA
Forward Current	IF	20mA	20mA	20mA	60mA
Reverse Voltage	VR	5V	5V	5V	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter		Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	Red	VF	1.9	2.0	2.4	V	IF=20mA
	Green		2.8	3.1	3.4
	Blue		2.8	3.0	3.4
	White		2.8	3.0	3.4		IF=60mA
Luminous Intensity	Red	IV	600		800	mcd	IF=20mA
	Green		1600		1800
	Blue		300		450
	White		18	20	22	lm	IF=60mA
Dominant Wavelength	Red	λd	620	625	630	nm	IF=20mA
	Green		520	523	530
	Blue		460	465	470
	White	CCT	6000		6500	K	IF=60mA
Peak Wavelength	Red	λP		633		nm	IF=20mA
	Green			525
	Blue			470
	White			---			IF=60mA
Half Width	Red	Dl		18		nm	IF=20mA
	Green			25
	Blue			23
	White			28			IF=60mA
Viewing Half Angle		2q1/2		±60		deg	IF=20mA
Reverse Current	Red	IR			5	uA	VR=5V
	Green				5
	Blue				5
	White				5
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
