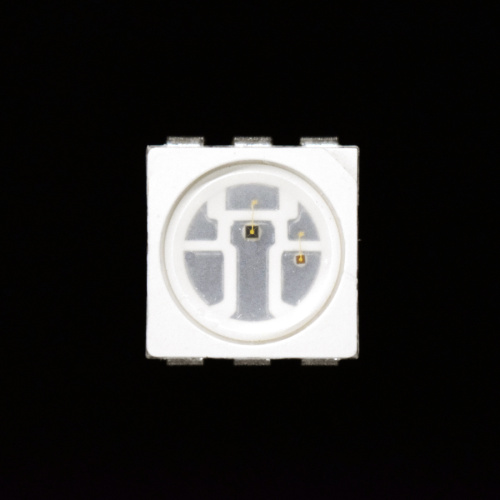

- 2 chips 5050 SMD LED -

5050FRIRC

In catalog custom LED, we also can package the 5050 SMD LED with just 2 chips inside of the SMD LED case. As we know, there will have three position on the SMD LED case for three LED bare die. But for some LED design, there will just need two kinds of color or wavelength for the application. Compare with the 3528 2 chips SMD LED, 5050 SMD LED will got better performance in heat dispatching and bigger emitting area. Do you need some 2 chips or 3 chips 5050 SMD LED for your applications? Contact us now! We can packaged the LED with any wavelength you need it. Contact us for more detail about it~

5050 SMD LED - 2 CHIPS LED

- Size: 5.0*5.0*1.3mm

- Chip Number: 2 chips

- Color: 850nm+630nm

- Type: Surface mount device

- Chip brand: Epistar

- Polarity mark cathode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters-

630nm and 850nm

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

630nm 850nm LED

- Electrical Parameters -

Parameter	Symbol	Rating
		630nm	850nm
Power Dissipation	Pd	80mw		90mw
Pulse Forward Current	IFP	100mA		100mA
Forward Current	IF	30mA		30mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	2000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter		Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	630nm	VF	1.9	2.0	2.4	V	IF=20mA
Forward Voltage	850nm	VF	1.3		1.7	V	IF=20mA
Luminous Intensity	850nm	IV	2.8		3.5	lm	IF=20mA
Luminous Intensity	630nm	IV	8		12	mw/sr	IF=20mA
Peak Wavelength	630nm	λP		633	645	nm	IF=20mA
Peak Wavelength	850nm	λP	840	850	860	nm	IF=20mA
Half Width	630nm	Dl		18		nm	IF=20mA
Half Width	850nm	Dl		25		nm	IF=20mA
Viewing Half Angle		2q1/2		±60		deg	IF=20mA
Reverse Current	630nm	IR			5	uA	VR=5V
Reverse Current	850nm	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
