5050 smd 4chips 850nm 660nm 530nm 470nm LED

5050 smd 4chips 850nm 660nm 530nm 470nm LED

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- Custom LED -

5050FRYBIRC

5050 smd plcc8 led,PLCC Multi-Wavelength Emitter Series. People using the LED to change light energy into internal energy, which can promoting cell growth. LED emits a cold light that does not produce high fever and does not burn the skin. It has significant effect on repairing aging skin, skin rejuvenation and whitening. As we know, different color of LED have a different wavelength, which means, different wavelength will have a different effect for the skin. Normally, people use wavelength like blue 460nm LED, 470nm, 580nm Yellow LED, 590nm LED , 630nm Red LED, 660nm LED, 810nm LED , 830nm LED, 840nm LED ect for the LED beauty machine

Best LED factory can package different chip inside of the LED as your requirement. Every guest's customized product is unique. Contact us and make your own design for your machine!

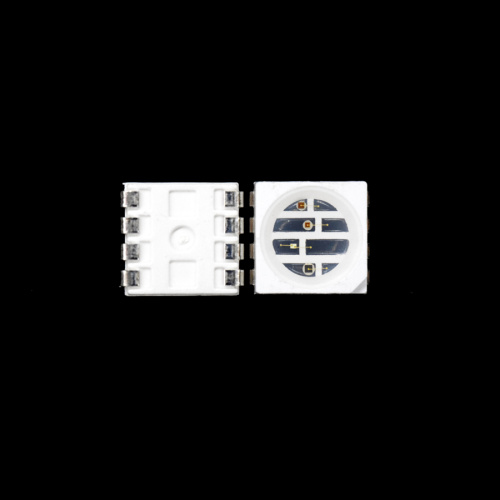

PLCC8 LED

- Size: 5.0*5.0*1.0mm

- Chip Number: 4 chips

- Color: 850nm 630nm 530nm 470nm LED

- Type: Surface mount device

- Chip brand: Epistar

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Dimension Parameters -

Custom Led

These SMD LED case are also available for IR LED , UV LED , Blue SMD LED, Red Smd Led, Amber LED ect.

- Electrical Parameters -

Parameter	Symbol	Rating
Parameter	Symbol	Red	Green	Blue	IR
Power Dissipation	Pd	50mw	70mw	70mw	70mw
Pulse Forward Current	IFP	100mA	100mA	100mA	100mA
Forward Current	IF	30mA	30mA	30mA	30mA
Reverse Voltage	VR	5V	5V	5V	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter		Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	Red	VF	1.9	2.0	2.4	V	IF=20mA
	Green		2.8	3.1	3.4
	Blue		2.8	3.0	3.4
	IR		1.3		1.6
Luminous Intensity	Red	IV	500		700	mcd	IF=20mA
	Green		1200		1500
	Blue		400		600
	IR		5		10	mw/sr
Peak Wavelength	Red	λP	650	660	670	nm	IF=20mA
	Green			530
	Blue			470
	IR			850
Half Width	Red	Dl		18		nm	IF=20mA
	Green			25
	Blue			23
	IR			22
Viewing Half Angle		2q1/2		±60		deg	IF=20mA
Reverse Current	Red	IR			5	uA	VR=5V
	Green				5
	Blue				5
