- 5050 SMD LED -

5050RGBIRC

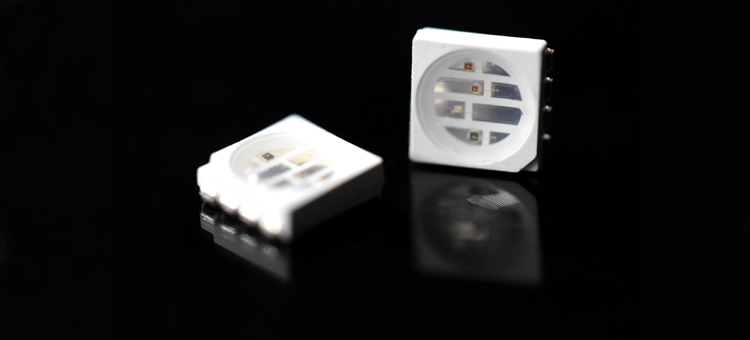

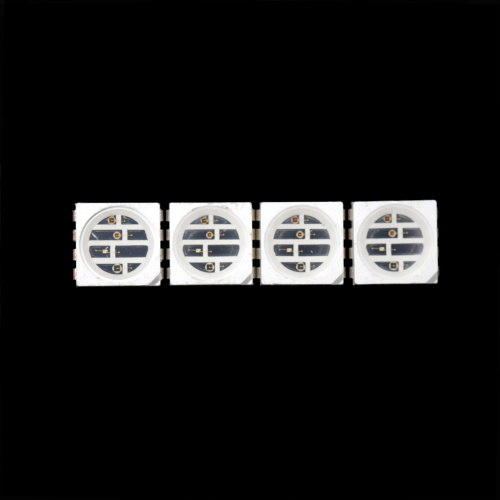

For commonly 5050 SMD LED, there will have 3 position on the SMD LED inside for LED bare chip. For this 5050 SMD LED, as you can see the picture as follow, there have 4 chips position. Same as the 3 chips 5050 SMD LED, with this SMD LED case, we can packaged 4 different chips inside for your application. If you're looking for some different lighting result or different lighting effect, you can design your own LED chip inside and contact us with detail, we can package it as your requirement. Do you need some custom LED for your project? Contact us for more detail now~

- Size: 5.0*5.0*1.6mm - Chip Number: 4chips - Type: Surface mount device - Chip brand: Epistar

- Different color are available - Different wavelength are available - Warranty: 5 Years - RoHS, REACH, EN62471

- Uniform light output - Long life-solid state reliability - Low Power consumption -Anti UV epoxy resin package -High temperature resistance

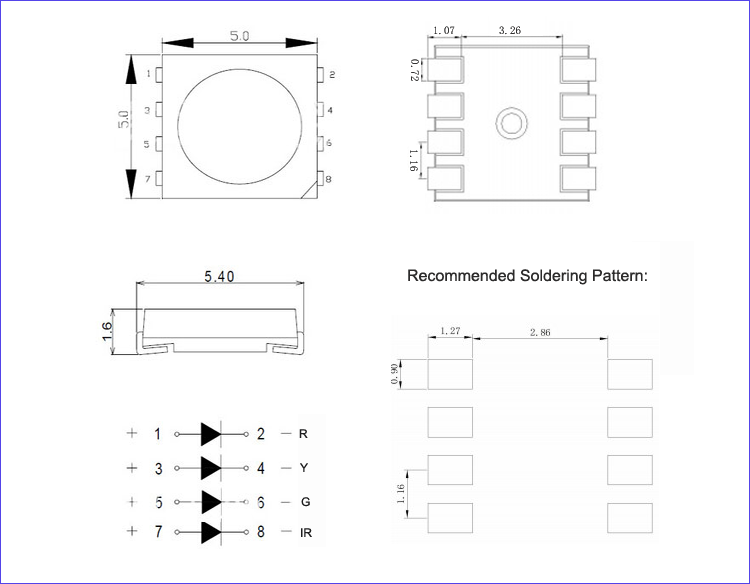

-Dimension Parameters -



*These SMD LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.*

- Emitting Color -

- Electrical Parameters -

Parameter	Symbol	Rating
		Red	Green	Blue	IR
Power Dissipation	Pd	50mw	70mw	70mw	70mw
Pulse Forward Current	IFP	100mA	100mA	100mA	100mA
Forward Current	IF	30mA	30mA	30mA	30mA
Reverse Voltage	VR	5V	5V	5V	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter		Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	Red	VF	1.9	2.0	2.4	V	IF=20mA
	Green		2.8	3.1	3.4
	Blue		2.8	3.0	3.4
	IR		1.3		1.6
Luminous Intensity	Red	IV	500		700	mcd	IF=20mA
	Green		1200		1500
	Blue		400		600
	IR		5		10	mw/sr
Peak Wavelength	Red	λP		633		nm	IF=20mA
	Green			525
	Blue			470
	IR			850
Half Width	Red	Dl		18		nm	IF=20mA
	Green			25
	Blue			23
	IR			22
Viewing Half Angle		2q1/2		±60		deg	IF=20mA
Reverse Current	Red	IR			5	uA	VR=5V
	Green				5
	Blue				5
	White				5
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
