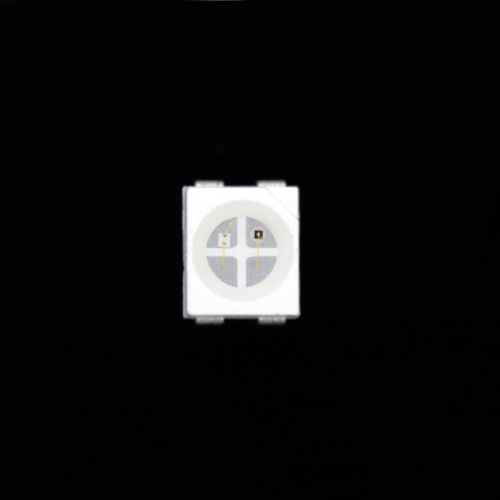

As we can see the picture as follow, there are 3528 SMD LED case with 4 leads and there have 3 position inside of the 3528 SMD LED. Which means we can put it up with 3 LED bare die inside of it. For this product, we just put 850nm and 400nm inside. These two kinds of LED can emits different lighting color and will have two kinds of lighting result. Since it's a custom LED, you can put it with different chip inside as your design of your project. Do you need some custom LED for your project? 1 chips 3528 SMD LED, 2 chips 3528 SMD LED or 3 chips 3528 SMD LED, we all can produce it as your requirement. Contact us now~

  -Dimension Parameters -

These SMD LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

- Electrical Parameters -

Parameter	Symbol	Rating		Unit
			Purple
Power Dissipation	Pd	50	100	mw
Pulse Forward Current	IFP	100	100	mA
Forward Current	IF	30	30	mA
Reverse Voltage	VR	5	5	V
Junction Temperature	Tj	110		°C
Operating Temperature	Topr	-40 ~ +80		°C
Storage Temperature Range	Tstg	-40 ~ +100		°C
Soldering Temperature	Tsol	260		°C
Electro-Static-Discharge(HBM)	ESD	2000	2000	V
Service life under normal conditions	Time	80000		H
Warranty	Time	5		Years
Antistatic	Piece	2000		Back

Optical and Electrical Characteristics( Tc=25℃)

Parameter		Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	IR	VF	1.8	2.0	2.4	V	IF=20mA
	UV		2.8	3.0
Luminous Intensity	IR	IV	1		5	mw/sr	IF=20mA
	UV		300		600	mcd
Peak Wavelength	IR	λP		850		nm	IF=20mA
	UV			400
Half Width		Dl		18		nm	IF=20mA
Viewing Half Angle		2q1/2		±60		deg	IF=20mA
Reverse Current		IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Production -

- Use -
