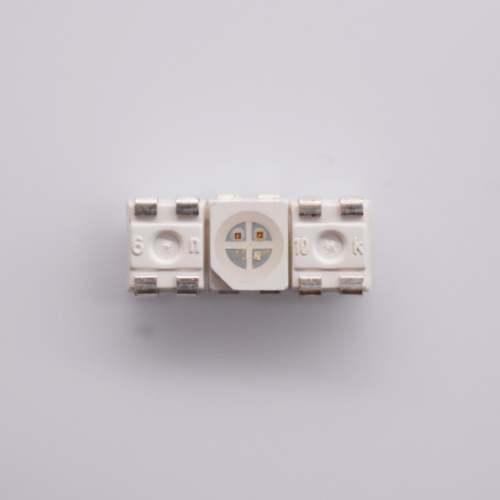

Are you looking for some tri-colour SMD LED for your project? 3528RYG-10 was packaged by red, yellow and green LED bare die, which can emits red LED color, yellow LED color and green LED color when you just connect the current to one single chip. Same as RGB LED SMD, this RGY LED SMD can also widely used in LED display ect application. RGB and RGY three color LED series is designed to provide endless vibrant color combination, utilizing color blending capability to achieve performance consistency. These tri-color LED available in top emitting and right angle SMD and through-hole LEDs(5mm through-hole LED, 8mm through-hole LED, 10mm through-hole LED ect). For all the three color LED, Best LED factory can package it with 6 pins and each color can be driven independently. Do you need some RGY SMD LED for your project? Contact us now~

-Dimension Parameters -

These SMD LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

- Electrical Parameters -

Parameter	Symbol	Rating			Unit
		Red	Green	Blue
Power Dissipation	Pd	75	105	105	mw
Pulse Forward Current	IFP	200	200	200	mA
Forward Current	IF	30	30	30	mA
Reverse Voltage	VR	5	5	5	V
Junction Temperature	Tj	110			°C
Operating Temperature	Topr	-40 ~ +80			°C
Storage Temperature Range	Tstg	-40 ~ +100			°C
Soldering Temperature	Tsol	260			°C
Electro-Static-Discharge(HBM)	ESD	2000	2000	2000	V
Service life under normal conditions	Time	80000			H
Warranty	Time	5			Years
Antistatic	Piece	2000			Back

Optical and Electrical Characteristics( Tc=25℃)

Parameter		Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	Red	VF	1.8	2.0	2.4	V	IF=20mA
	Green			3.0	3.4
	Blue			3.0	3.4
Luminous Intensity	Red	IV	500		800	mcd	IF=20mA
	Green				1800		IF=20mA
	Blue				700		IF=20mA
Peak Wavelength	Red	λP		633		nm	IF=20mA
	Green			527
	Blue			590
Dominant Wavelength	Red	λD	618	620	626	nm	IF=20mA
	Green			520	525
	Blue			589	594
Half Width		Dl		18		nm	IF=20mA
Viewing Half Angle		2q1/2		±60		deg	IF=20mA
Reverse Current		IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- More 3528 RYG LED -

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel
