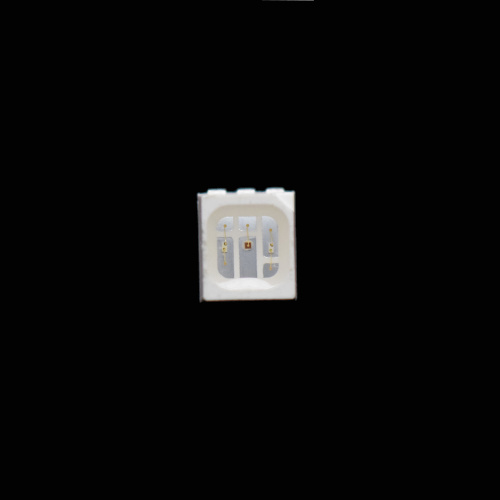

6 pins 3528 RGB LED is a new type RGB LED in the market. It's similar with the common 5050 RGB LED type, which have three pins in both of side and the size that have the unfilled triangle shape we mark it as cathode. 3528RGB-6P was packaged by red green and blue three color inside. On the other hand, this case are also perfect for other color.That's why this case will work perfect as custom LED. You can name the wavelength to us then we can produce it as your project. For all the SMD LED, there will have a polarity mark in the surface of the SMD LED case. It is a unfilled corner with triangle shape. With this mark, we can easy to know the polarity on the SMD LED when we using it. 3528 RGB-6P polarity mark cathode, which means the side with the triangle shape is cathode. Which is very similar with 5050 RGB LED. Really need some ultra bright RGB LED for your product?  Try this one! Difference with the black package 3528 RGB LED, which is the best choose for the display. These 3528 RGB LED with white package got a higher brightness than the black one and more perfect for the LED advertisement board, LED backlight  or the other LED light projects.  SMT 3528 RGB LED didn't have the digital controller inside, so that you can add a controller on the circuit to control it as you want. With this RGB LED, It will definitely zing your project!

-Dimension Parameters-

These SMD LED case are also available for  IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

- Electrical Parameters -

Parameter	Symbol	Rating			Unit
		red	Green	Blue
Power Dissipation	Pd	75	105	105	mw
Pulse Forward Current	IFP	200	200	200	mA
Forward Current	IF	30	30	30	mA
Reverse Voltage	VR	5	5	5	V
Junction Temperature	Tj	110			°C
Operating Temperature	Topr	-40 ~ +80			°C
Storage Temperature Range	Tstg	-40 ~ +100			°C
Soldering Temperature	Tsol	260			°C
Electro-Static-Discharge(HBM)	ESD	2000	2000	2000	V
Service life under normal conditions	Time	80000			H
Warranty	Time	5			Years
Antistatic	Piece	2000			Back

Optical and Electrical Characteristics( Tc=25℃)

Parameter		Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	Red	VF	1.8	2.0	2.4	V	IF=20mA
	Green			3.0	3.4
	Blue			3.0	3.4
Luminous Intensity	Red	IV	500		800	mcd	IF=20mA
	Green				1800		IF=20mA
	Blue				700		IF=20mA
Peak Wavelength	Red	λP		633		nm	IF=20mA
	Green			527
	Blue			462
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- More 3528 RGB LED -

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing-

*We package it with vacuum packing after tape it as a reel

- Application -

- Production -

- Use -
