970nm Infrared LED 3mm LED Blue Lens H4.5mm

970nm Infrared LED 3mm LED Blue Lens H4.5mm

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 970nm LED -

3104IRBT-97L/42I250-60A

This is 970nm LED with 1W high output for through-hole LED. Normally, 1W LED have handle about 350mA current when they packaged with SMD LED case that have a heat stink on the bottom of the SMD LED case for heat dispation. But, when this 1W LED bare die was packaged by through-hole LED, our suggest that make sure the operation current under 250mA. With this way, it can effectly make this IR LED have a longer lifespan. Through-hole LED do not have that ability to dispatch the extra heat as well as SMD LED. So if you really need to design your product with 1W through-hole LED, please make sure the operation is under 250mA for the better service of through-hole LED. However, through-hole LED might cannot work as good as SMD LED on heat dispation, it do can make this IR LED have kinds of viewing angle for your choose. Such as, 60 degree, 30 degree, 90degre ect. y970nm high power IR LED .970nm-980nm LED. Different angle will make different lighting result, the more narrow beam width, the more longer radiation distance. By contrast, the wider beam width, the bigger lighting surface area. There also have other wavelength are available in Best LED factory, such as: 970nm LED, 980nm through-hole LED, 970nm SMD LED, 980nm SMD LED, 1550nm LED, 1300nm LED ect.

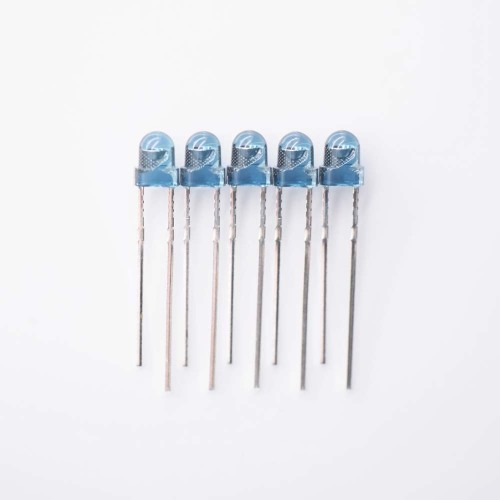

970nm LED - 3mm Blue Lens 60 degree

- Size: 3 mm*H4.5mm

- Chip Number: 1 chips

- Color: 970nm

- Type: Blue clear

- Chip brand: Tyntek

- 60 degree

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

- Size of 3mm IR Through-hole LED -

970nm 4.5mm high led

*This case are also available for other LED, such as: 5mm green through-hole LED, UV LED, 660nm LED, 940nm LED, 5mm blue through-hole LED, yellow LED, amber LED ect*

- Working Through-hole IR LED -

IR LED

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Through-hole IR LED Parameter -

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating
Power Dissipation	Pd	1000mW
Pulse Forward Current	IFP	1000mA
Forward Current	IF	350mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	2000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Back
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Optical and Electrical Characteristics( Tc=25℃)

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	1.2		1.6	V	IF=250mA
Pulse Forward Voltage	VF		2.3		V	IFP=1000mA
Radiant Intensity	IE	90		140	mw/sr	IF=250mA
Peak Wavelength	λP	970		980	nm	IF=250mA
Total Radiated Power	PO		130		mw	IF=250mA
Half Width	Dl		50		nm	IF=250mA
Viewing Half Angle	2q1/2		±30		deg	IF=250mA
Reverse Current	IR			5	uA	VR=5V
Rise Time	Tr		25		ns	IF=250mA
Fall Time	Tf		13		ns	IF=250mA
*Luminous Intensity is measured by ZWL600.
*q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
