5050 RGB LED SMD with Competitive Price

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

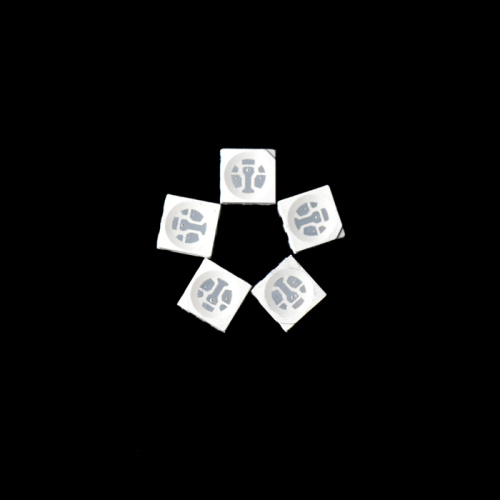

- 5050 RGB LED -

5050-3-03-RGBW

Different with those addressable RGB LED SMD, this 5050-3-03-RGBW is a RGB LED SMD with three chip inside and 6 pins out there for conntection. Normally we use the 3528 RGB LED for the LED display. But for some project, people will use some bigger size LED for their application. If you just need some RGB LED like 5050 RGB LED SMD for your light project such LED toy, LED dispaly ect. This one can meet your required, stable performance and competitive price won't let you disappointment!

RGB LED - 5050 SMD LED

- Size: 3.5*2.8*1.9mm

- Chip Number: 3 chips

- Color: RGB LED

- Type: Surface mount device

- Chip brand: Epistar

- Polarity mark cathode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters-

5050-3-03-RGBW

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

- Electrical Parameters -

Parameter	Symbol	Rating			Unit
		Red	Green	Blue

Power Dissipation	Pd	60	100	100	mw
Pulse Forward Current	IFP	100	100	100	mA
Forward Current	IF	30	30	30	mA
Reverse Voltage	VR	5	5	5	V
Junction Temperature	Tj	110			°C
Operating Temperature	Topr	-40 ~ +80			°C
Storage Temperature Range	Tstg	-40 ~ +100			°C
Soldering Temperature	Tsol	260			°C
Electro-Static-Discharge(HBM)	ESD	2000	2000	2000	V
Service life under normal conditions	Time	80000			H
Warranty	Time	2			Years
Antistatic	Piece	7500*3			Back

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage	Red	VF	1.8	2.0	2.4	V	IF=20mA
	Green		2.8	3.0	3.4
	Blue		2.8	3.0	3.4
Luminous Intensity	Red	IV	200		500	mcd	IF=20mA
	Green		600		1300		IF=20mA
	Blue		200		500		IF=20mA
Peak Wavelength	Red	λP		633		nm	IF=20mA
	Green			527
	Blue			462
Dominant Wavelength	Red	λD	618	620	626	nm	IF=20mA
	Green		515	525	530
	Blue		463	465	475
Half Width		Dl		18		nm	IF=20mA
Viewing Half Angle		2q1/2		±60		deg	IF=20mA
Reverse Current		IR			5	uA	VR=5V
