5050UBC46D2L30

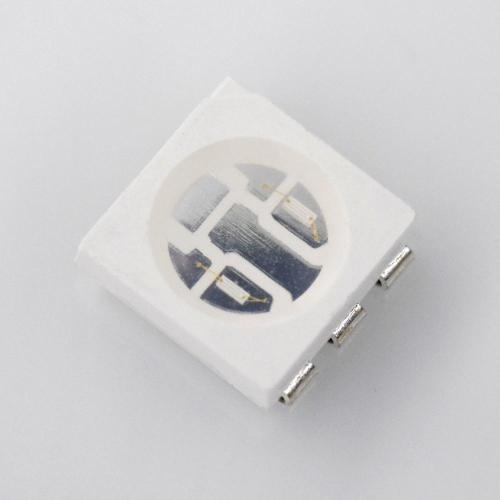

830 nm ir led&630 nm red led .3528 SMD LED are also can be packaged with 2 chips LED inside. But sometime we will need some super bright or some high power LED for our application so that we need some bigger bare die inside of the SMD LED case. Compare with 3528 SMD LED,5050 SMD LED case got a bigger size. Which means it will got a better heating dispatching performance than 3528 SMD LED. There have 6 pins for the LED color control. But since this LED just got 2 chips inside, the two of the middle pins cannot control the lighting. Do you also need some custom LED like this LED as follow? Contact us and let us know more detail about your required, we will do this for you! 2 chips 5050 smd led There have 3 position in the 5050 SMD LED for the LED dare die. But for some application, there just need with 2 chips inside. Custom LED are available in our factory, so in this case, we can packaged it with 2 chips inside, Red + IR. As you can see in the picture, the middle position is empty, which means we didn't package any LED chip inside of it.

5050 SMT LED - 2CHIPS LED

- Size: 5.0*5.0*1.3mm

- Chip Number: 2 chips

- Color: Blue

- Type: Surface mount device

- Chip brand: Epistar

- Polarity mark cathode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters-

SMD 5050 LED

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

475nm LED

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	200mw
Pulse Forward Current	IFP	100mA*2
Forward Current	IF	30mA*2
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	1000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	2.8	3.0	3.4	V	IF=20mA*2
Luminous Flux	Φ	2		4	lm	IF=20mA*2
Luminous Flux	Φ	4		6	lm	IF=20mA*2
Dominant Wavelength	λd	455		460	nm	IF=20mA*2
		460		465
		465		470
		470		475
		475		480
		480		485
Peak Wavelength	λP		460		nm	IF=20mA*2
Half Width	Dl		25		nm	IF=20mA*2
Viewing Half Angle	2q1/2		±60		deg	IF=20mA*2
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
