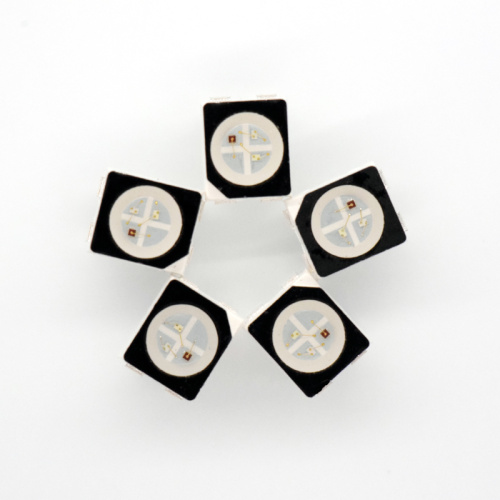

Ultra Bright 3528 RGB LED Surface Black Case

Ultra Bright 3528 RGB LED Surface Black Case

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW, FCA

Min. Order:: 5000 Piece/Pieces

Min. Order:: 5000 Piece/Pieces

Delivery Time:: 5-7 Business Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000000000 pcs/week
Supply Ability:	7000000000 pcs/week
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW,FCA
Certificate:	GB/T19001-2008/ISO9001:2008
HS Code:	8541401000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

- 3528 RGB LED -

3528RGB-100B

Do you need some 3528 SMD RGB LED for your LED display or other project? 3528RGB-100 are ready for you. We packaged this 3528 RGB LED with Epistar 14mil chip. So that this RGB LED can have 0.5W high output for each single color. And have 1.5W high output when you light all three color at the same time. It will be a beautiful white color when you light all the color at the same time. On the other hand, if you need lower brightness on this RGB LED, you also can control this brightness by your current. The more current you offer, the more brightness you can get. 3528 RGB LED can be 6 pins and 4 pins and the polarity can be common anode or common cathode. if you have some requirement for the pins, just feel free to contact us and we will produce this LED as your requirement.

3528 RGB LED

- Size: 3.5*2.8*1.9mm

- Chip Number: 3chips

- Color: RGB LED

- Type: Surface mount device

- Chip brand: Epistar

- Common Anode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters-

black 3528 RGB SMD LED

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

- Electrical Parameters -

Parameter	Symbol	Rating			Unit
		Red	Green	Blue

Power Dissipation	Pd	150	205	205	mw
Pulse Forward Current	IFP	200	200	200	mA
Forward Current	IF	60	60	60	mA
Reverse Voltage	VR	5	5	5	V
Junction Temperature	Tj	110			°C
Operating Temperature	Topr	-40 ~ +80			°C
Storage Temperature Range	Tstg	-40 ~ +100			°C
Soldering Temperature	Tsol	260			°C
Electro-Static-Discharge(HBM)	ESD	2000	2000	2000	V
Service life under normal conditions	Time	80000			H
Warranty	Time	5			Years
Antistatic	Piece	2000			Back

Optical and Electrical Characteristics( Tc=25℃)

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage	Red	VF	1.8	2.0	2.4	V	IF=60mA
	Green		2.8	3.0	3.4
	Blue		2.8	3.0	3.4
Luminous Intensity	Red	IV	1700		2500	mcd	IF=60mA
	Green		3000		5000		IF=60mA
	Blue		1000		1800		IF=60mA
Peak Wavelength	Red	λP		633		nm	IF=60mA
	Green			527
	Blue			462
Dominant Wavelength	Red	λD	618	620	626	nm	IF=60mA
	Green		517	520	525
	Blue		463	465	468
Half Width		Dl		18		nm	IF=60mA
Viewing Half Angle		2q1/2		±60		deg	IF=60mA
Reverse Current		IR			5	uA	VR=5V
