- 3528 Green SMD LED -

3528LGC-8

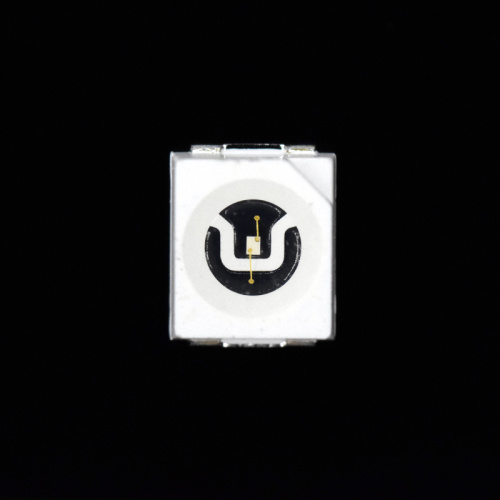

Green SMD LED can be package with kinds of different size. In this 3528LGC-8, we produce it with 3528 SMD LED PLCC2 SMD LED case. From the picture as follow, we can see the LED chip are just right in the middle of this SMD LED. Which can make sure the brightness will be comeing out in the middle. At the same time, we also produce this LED with gold wire donding, which make this 520nm LED can handle higher operation current and get stable performance at the same time. We can light up this Green LED with small current, even it's just 2mA. But this SMD LED will just emits dim green light at 2mA. When you pass more current to it, it will emits more bright as your current. Let's just say you can control this brightness of green LED as your operation current. But make sure it's within 30mA.

520nm green SMD LED

- Size: 2.8*3.5*1.9mm

- Chip Number: 1 chips

- Color: 520nm Green

- Type: Surface mount device

- Polarity Mark

- Different color are available

- Different wavelength are available

- Warranty: 2 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

-Dimension Parameters -

3528 smd 555nm led

These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Electrical Parameters -

Parameter

Symbol

Rating

Power Dissipation

Pd

105mw

Pulse Forward Current

IFP

100mA

Forward Current

IF

30mA

Reverse Voltage

VR

5V

Junction Temperature

Tj

100°C

Operating Tempertature

Topr

-40 - +80°C

Storage Tempertature

Tstg

-40 - +100°C

Soldering Temperature

Tsol

260°C

Electro-Static-Discharge(HBM)

ESD

1000v

Warranty

Time

2 Years

Antistatic bag

Piece

2000 Bag

*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.

*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter

Symbol

Min

Typ

Max

Unit

Test Condition

Forward Voltage

VF
2.8 3.0 3.4
V

IF=20mA

Luminous Intensity

IV

800

1400
mcd
IF=20mA

Peak Wavelength

λP

517

nm

IF=20mA

Dominant Wavelength

λd

515

525

nm

IF=20mA

Half Width

Dl

22

nm

IF=20mA

Viewing Half Angle

2q1/2

±60

deg

IF=20mA

Reverse Current

IR

5

uA

VR=5V

*Luminous Intensity is measured by ZWL600.

*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Production -

- SMD LED Use of Attention-

SMD LED Use of attention
