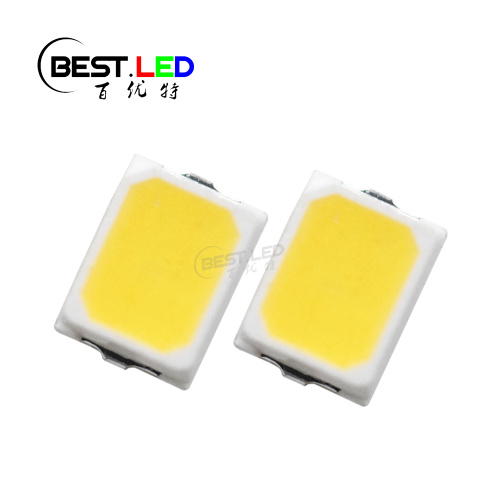

3000K Warm White LED 2016 SMD 60mA
  • 3000K Warm White LED 2016 SMD 60mA
  • 3000K Warm White LED 2016 SMD 60mA
  • 3000K Warm White LED 2016 SMD 60mA
  • 3000K Warm White LED 2016 SMD 60mA
  • 3000K Warm White LED 2016 SMD 60mA
3000K Warm White LED 2016 SMD 60mA
3000K Warm White LED 2016 SMD 60mA
3000K Warm White LED 2016 SMD 60mA
3000K Warm White LED 2016 SMD 60mA
3000K Warm White LED 2016 SMD 60mA

3000K Warm White LED 2016 SMD 60mA

Min. Order:
4000 Piece/Pieces
Min. Order:
4000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express, Others
Port:
SHENZHEN
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 30000000
Supply Ability: 30000000/Month
Payment Type: T/T,Paypal,W/U
Incoterm: FOB
Certificate: ISO:9001
HS Code: 8541410000
Transportation: Ocean,Land,Air,Express,Others
Port: SHENZHEN
Product Description
Product Description

What is 3000K warm white?

Warm white LED is a white SMD LED or white through-hole LED that emits warm white light with range of 2600-3500K. 2016WW26K60L4W is a warm white SMD LED that emits color temperature in range of 2900-3100K and the brightness can reach the range of 24-30lm when it working at current of 60mA. Which means it's also a warm white LED. If you making some project where needs cozy and sleepy feeling, warm white LED will definitely help a lot in this lighting. Because that will emits the yellow-ish white LED that relax people.

2016WW30K28L3W 3000K Warm White LED 2016 SMD 60mA 0.2W Warm white SMD LED 2900-3100K


Electrical Parameters:

Parameter

Symbol

Min

Type

Max

Unit

Test Condition

Forward Voltage

VF

2.8

-

3.2

V

IF=60mA

Luminous Flux

IV

24

-

30

lm

IF=60mA

Color temperature

CCT

2600                    2800

 K

IF=60mA

Viewing Half Angle

 2θ1/2


120



deg

IF=60mA

Reverse Current

IR



5

uA

VR=5V

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.


White 2016 SMD LED Demension; Size of 2016WW30K28L3W 3000K Warm White LED 2016 SMD 60mA 0.2W Warm white SMD LED 2900-3100K

*UV LED, Red SMD LED, Yellow LED, Blue SMD LED are all available in this 2016 SMD LED size.*


Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;
