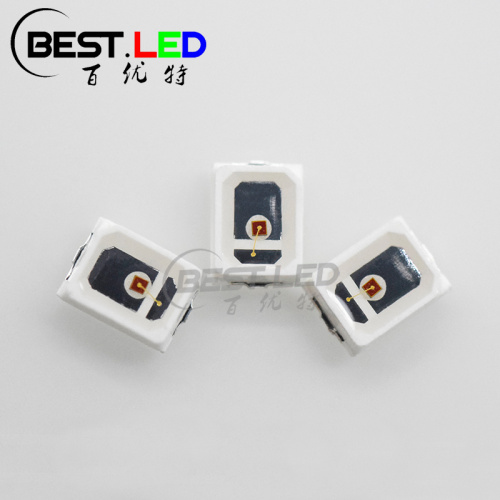

Series 2016 LED Super Bright Red SMD LED

Surface Mount Device with 2016 SMD LED case;

There have kinds of SMD LED types, such as 5050 SMD LED, 5730 SMD LED, 3528 SMD LED, 2835 SMD LED or 2016 SMD LED. Compare with 2835 SMD LED, this 2016 SMD LED got smaller size. In this size of case, we produce it with super bright red LED chip inside and cover it as clear epoxy lens. Which can make sure this LED work pretty well can emits super bright light for the LED prodject. At the same time, 2016 LED SMD case are also have a heat sink on the bottom, which can make sure the LED can dispatch the extra heat on time.

Electrical Parameters:

*Pulse forward current confition: Duty 1% and Pulse width=10us.

*Soldering confition: Soldering confition must be completed with 3 secongds at 260℃

*Luminous intensity is measured by ZWL600.

*λD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Size of 2016 LED SMT:

Product Details:

99.99% purity gold wire;

Silver plated LED frame;

Famous branded chips;

High quality epoxy;

Production progress:
